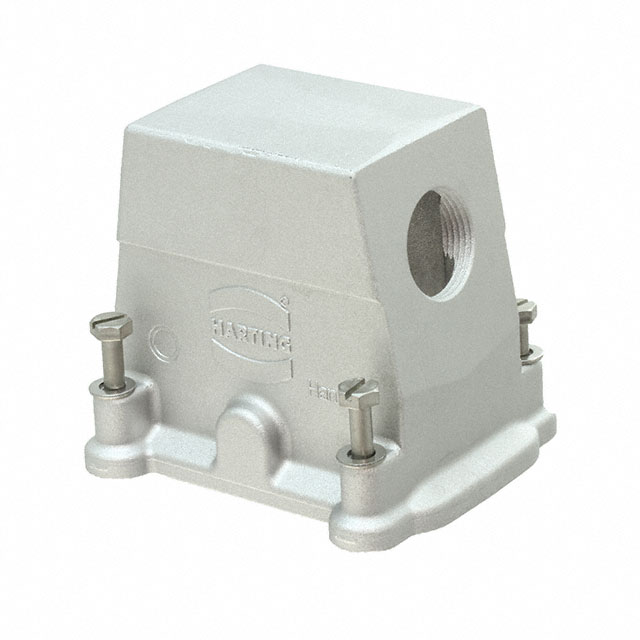

09620100540 - 09620100540

09620100540

Active
HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 10B; FOR CABLE; IP65; EMC

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification09620100540
Connector TypeHood
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationScrew Locks on Hood
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size10B
Size / Dimension [x]3.386 in
Size / Dimension [x]86 mm
Size / Dimension [y]2.795 in
Size / Dimension [y]71 mm
Size / Dimension [z]2.953 in
Size / Dimension [z]75 mm
StyleSide Entry
Thread SizePG16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 117.87
NewarkEach 1$ 124.09
10$ 117.12
25$ 113.63
50$ 105.27
100$ 99.69
TMEN/A 1$ 108.58
3$ 97.15
5$ 85.72

Description

General part information

09620100 Series

Hood Connector Side Entry PG16 10B IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

Datasheet

Datasheet
