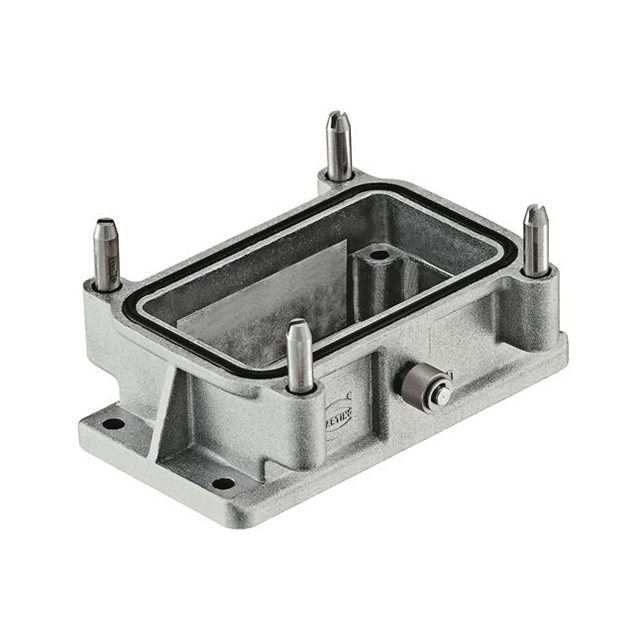

09620100381

Active

HARTING Technology Group

CONN BASE BOTTOM ENTRY SZ10B

Search across all available documentation for this part.

Active

HARTING Technology Group

CONN BASE BOTTOM ENTRY SZ10B

Technical Specifications

Parameters and characteristics for this part

Specification	09620100381

Connector Type	Base - Panel Mount
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	3.661 inches
Size / Dimension [x]	93 mm
Size / Dimension [y]	2.717 "
Size / Dimension [y]	69 mm
Size / Dimension [z]	1.732 in
Size / Dimension [z]	44 mm
Style	Bottom Entry

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Lock Location	Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Ingress Protection	Size	Thread Size
HARTING Technology Group 09620100381	Base - Panel Mount	125 °C	-40 °C	Aluminum Die Cast	Locking Clip (1) on Hood	Bottom Entry	2.717 "	3.661 inches	69 mm	1.732 in	44 mm	93 mm	IP65 - Dust Tight Water Resistant	10B
HARTING Technology Group 09620100544
HARTING Technology Group 09620100582	Hood	125 °C	-40 °C	Aluminum Die Cast	Locking Clip (1) on Hood	Side Entry	2.795 in	3.386 in	71 mm	2.953 in	75 mm	86 mm	IP65 - Dust Tight Water Resistant	10B	PG29
HARTING Technology Group 09620100580	Hood	125 °C	-40 °C	Aluminum Die Cast	Locking Clip (1) on Hood	Side Entry	2.795 in	3.386 in	71 mm	2.953 in	75 mm	86 mm	IP65 - Dust Tight Water Resistant	10B	PG16
HARTING Technology Group 09620100540	Hood	125 °C	-40 °C	Aluminum Die Cast	Screw Locks on Hood	Side Entry	2.795 in	3.386 in	71 mm	2.953 in	75 mm	86 mm	IP65 - Dust Tight Water Resistant	10B	PG16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 186.74

General part information

Base - Panel Mount Connector Bottom Entry 10B IP65 - Dust Tight, Water Resistant
