09620100582 - 9620100580

09620100582

Active
HARTING Technology Group

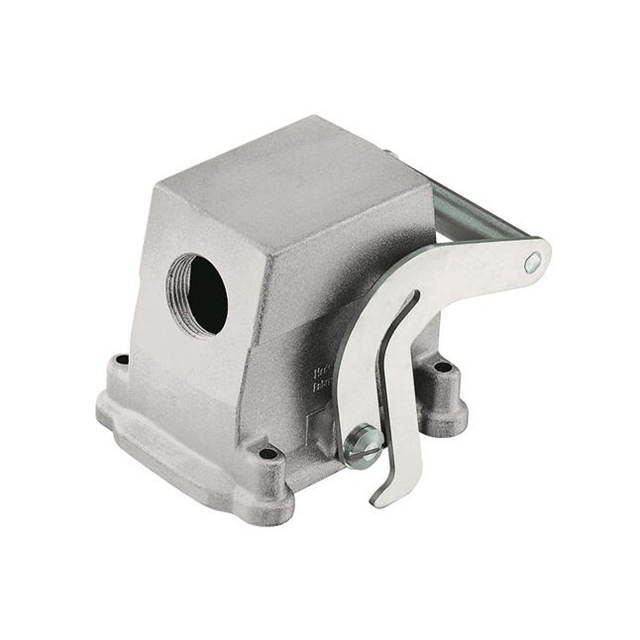

HAN EMC 10 HOOD SIDE ENTRY PG 29 CENTRAL ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
09620100582 - 9620100580

09620100582

Active
HARTING Technology Group

HAN EMC 10 HOOD SIDE ENTRY PG 29 CENTRAL ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification09620100582
Connector TypeHood
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (1) on Hood
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size10B
Size / Dimension [x]3.386 in
Size / Dimension [x]86 mm
Size / Dimension [y]2.795 in
Size / Dimension [y]71 mm
Size / Dimension [z]2.953 in
Size / Dimension [z]75 mm
StyleSide Entry
Thread SizePG29

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 293.50
NewarkEach 1$ 258.89
10$ 244.34
25$ 237.07
50$ 219.62
100$ 207.98

Description

General part information

09620100 Series

Hood Connector Side Entry PG29 10B IP65 - Dust Tight, Water Resistant
