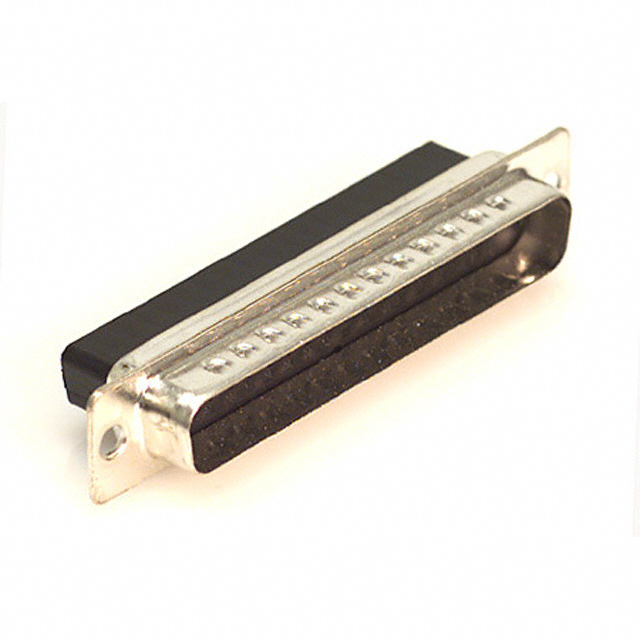

170-037-173L000
ActiveD SUB CONNECTOR HOUSING, 37 POSITIONS, D SUB, DC, 170 SERIES, PLUG, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
170-037-173L000
ActiveD SUB CONNECTOR HOUSING, 37 POSITIONS, D SUB, DC, 170 SERIES, PLUG, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 170-037-173L000 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -50 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
170-037 Series
| Part | Number of Positions | Color | Connector Style | Features | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Connector Type | Note | Number of Rows | Shell Material, Finish | Contact Type | Flange Feature | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 37 | Black | D-Sub | Grounding Indents | Free Hanging (In-Line) | -50 °C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Plug for Male Contacts | Contacts Not Included | 2 | Nickel Plated Steel | Signal | Cable Side | 4 (DC C) |
MH Connectors | 37 | D-Sub | Grounding Indents | Free Hanging (In-Line) | -50 °C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Plug for Male Contacts | Contacts Not Included | 2 | Nickel Plated Steel | Signal | Cable Side | 4 (DC C) | |
MH Connectors | 37 | Black | D-Sub | Grounding Indents | Free Hanging (In-Line) | -50 °C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Plug for Male Contacts | Contacts Not Included | 2 | Nickel Plated Steel | Signal | Housing/Shell (Unthreaded) | 4 (DC C) |
MH Connectors | 37 | Black | D-Sub | Free Hanging (In-Line) | -50 °C | 125 °C | Polybutylene Terephthalate (PBT) | Receptacle for Female Contacts | Contacts Not Included | 2 | Signal | 4-40 | 4 (DC C) | ||
MH Connectors | 37 | Black | D-Sub | Free Hanging (In-Line) | -50 °C | 125 °C | Polybutylene Terephthalate (PBT) | Receptacle for Female Contacts | Contacts Not Included | 2 | Nickel Plated Steel | Signal | Cable Side | 4 (DC C) | |
MH Connectors | 37 | Black | D-Sub | Free Hanging (In-Line) | -50 °C | 125 °C | Polybutylene Terephthalate (PBT) | Plug for Male Contacts | Contacts Not Included | 2 | Signal | Cable Side | 4 (DC C) | ||
MH Connectors | 37 | Black | D-Sub | Free Hanging (In-Line) | -50 °C | 125 °C | Polybutylene Terephthalate (PBT) | Receptacle for Female Contacts | Contacts Not Included | 2 | Signal | Housing/Shell (Unthreaded) | 4 (DC C) | ||
MH Connectors | 37 | Black | D-Sub | Free Hanging (In-Line) | -50 °C | 125 °C | Polybutylene Terephthalate (PBT) | Receptacle for Female Contacts | Contacts Not Included | 2 | Nickel Plated Steel | Signal | Housing/Shell (Unthreaded) | 4 (DC C) | |
MH Connectors | 37 | Black | D-Sub | Free Hanging (In-Line) | -50 °C | 125 °C | Polybutylene Terephthalate (PBT) | Plug for Male Contacts | Contacts Not Included | 2 | Signal | 4-40 | 4 (DC C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
170-037 Series
The 170 series Crimp and Poke D-Sub Connector is available in 5 industry sizes/positions (9, 15, 25, 37 and 50). It is a low cost commercial version of military standard. It allows for easy loading of only the positions required using crimp and snap-in contacts. The nickel-plated connector shells have indents to provide grounding and additional retention.
Documents
Technical documentation and resources
