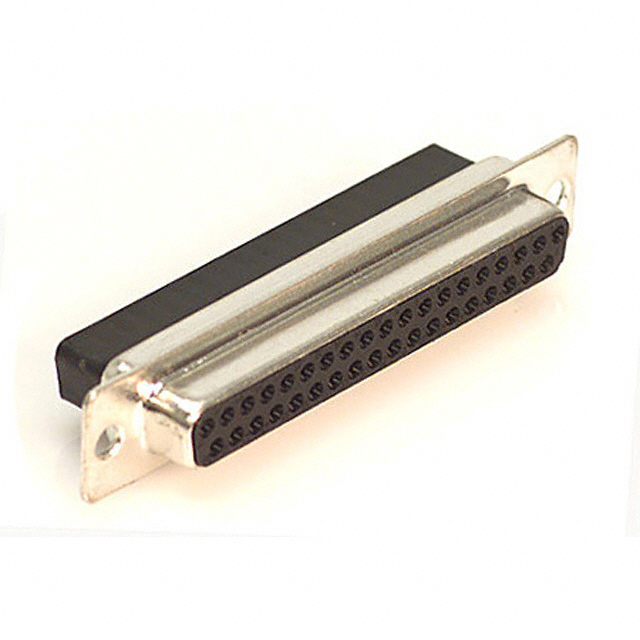

170-037-273L000 - 170-037-272-(L)000

170-037-273L000

Active
MH Connectors

D SUB CONNECTOR HOUSING, 37 POSITIONS, D SUB, DC, 170 SERIES, RECEPTACLE, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDrawing EN+2
170-037-273L000 - 170-037-272-(L)000

170-037-273L000

Active
MH Connectors

D SUB CONNECTOR HOUSING, 37 POSITIONS, D SUB, DC, 170 SERIES, RECEPTACLE, STEEL BODY

Deep-Dive with AI

DocumentsDatasheetDrawing EN+2

Technical Specifications

Parameters and characteristics for this part

Specification170-037-273L000
ColorBlack
Connector StyleD-Sub
Connector TypeReceptacle for Female Contacts
Contact TypeSignal
Dielectric MaterialPolybutylene Terephthalate (PBT)
Flange FeatureHousing/Shell (Unthreaded)
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions37
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-50 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout4 (DC, C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 1.86
10$ 1.58
40$ 1.43
80$ 1.36
120$ 1.32
280$ 1.25
520$ 1.19
1000$ 1.19
NewarkEach 10$ 1.90
50$ 1.73
100$ 1.58
250$ 1.46
500$ 1.36
1000$ 1.27

Description

General part information

170-037 Series

The 170 series Crimp and Poke D-Sub Connector is available in 5 industry sizes/positions (9, 15, 25, 37 and 50). It is a low cost commercial version of military standard. It allows for easy loading of only the positions required using crimp and snap-in contacts. The nickel-plated connector shells have indents to provide grounding and additional retention.
