170-037-273L020

Active

MH Connectors

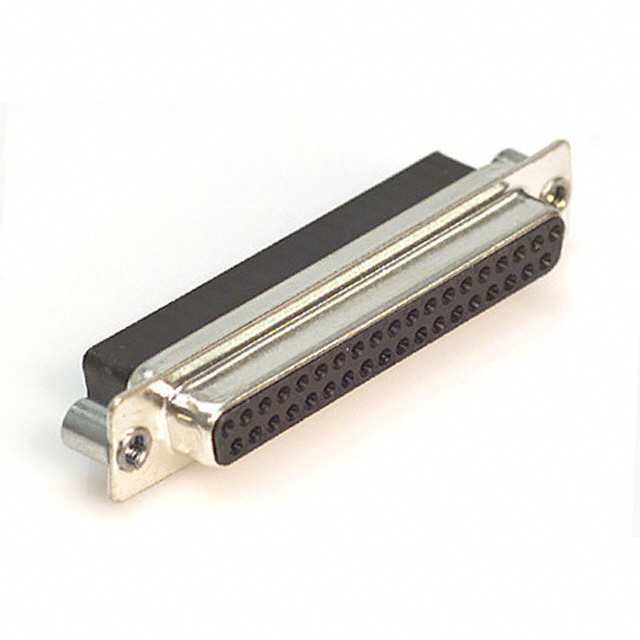

D SUB CONNECTOR HOUSING, 37 POSITIONS, D SUB, DC, 170 SERIES, RECEPTACLE, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

170-037-273L020

Active

MH Connectors

D SUB CONNECTOR HOUSING, 37 POSITIONS, D SUB, DC, 170 SERIES, RECEPTACLE, STEEL BODY

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	170-037-273L020

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Cable Side
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)

170-037 Series

Part	Number of Positions	Color	Connector Style	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Connector Type	Note	Number of Rows	Shell Material, Finish	Contact Type	Flange Feature	Shell Size, Connector Layout
MH Connectors 170-037-173L010	37	Black	D-Sub	Grounding Indents	Free Hanging (In-Line)	-50 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Plug for Male Contacts	Contacts Not Included	2	Nickel Plated Steel	Signal	Cable Side	4 (DC C)
MH Connectors 170-037-173L020	37		D-Sub	Grounding Indents	Free Hanging (In-Line)	-50 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Plug for Male Contacts	Contacts Not Included	2	Nickel Plated Steel	Signal	Cable Side	4 (DC C)
MH Connectors 170-037-173L000	37	Black	D-Sub	Grounding Indents	Free Hanging (In-Line)	-50 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Plug for Male Contacts	Contacts Not Included	2	Nickel Plated Steel	Signal	Housing/Shell (Unthreaded)	4 (DC C)
MH Connectors 170-037-272L030	37	Black	D-Sub		Free Hanging (In-Line)	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	Receptacle for Female Contacts	Contacts Not Included	2		Signal	4-40	4 (DC C)
MH Connectors 170-037-273L020	37	Black	D-Sub		Free Hanging (In-Line)	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	Receptacle for Female Contacts	Contacts Not Included	2	Nickel Plated Steel	Signal	Cable Side	4 (DC C)
MH Connectors 170-037-172L010	37	Black	D-Sub		Free Hanging (In-Line)	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	Plug for Male Contacts	Contacts Not Included	2		Signal	Cable Side	4 (DC C)
MH Connectors 170-037-272L000	37	Black	D-Sub		Free Hanging (In-Line)	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	Receptacle for Female Contacts	Contacts Not Included	2		Signal	Housing/Shell (Unthreaded)	4 (DC C)
MH Connectors 170-037-273L000	37	Black	D-Sub		Free Hanging (In-Line)	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	Receptacle for Female Contacts	Contacts Not Included	2	Nickel Plated Steel	Signal	Housing/Shell (Unthreaded)	4 (DC C)
MH Connectors 170-037-172L030	37	Black	D-Sub		Free Hanging (In-Line)	-50 °C	125 °C	Polybutylene Terephthalate (PBT)	Plug for Male Contacts	Contacts Not Included	2		Signal	4-40	4 (DC C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	60	$ 2.83
Newark	Each	10	$ 3.61
		100	$ 3.00
		500	$ 2.56
		1000	$ 2.18
		5000	$ 1.96

Description

General part information

170-037 Series

Receptacle for Female Contacts Housing D-Sub Connector 37 Position
