G3T12AH-R

Active

NKK Switches

TOGGLE SWITCH, ON-ON, SPDT, NON ILLUMINATED, SURFACE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

G3T12AH-R

Active

NKK Switches

TOGGLE SWITCH, ON-ON, SPDT, NON ILLUMINATED, SURFACE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G3T12AH-R

Actuator Length [x]	3.81 mm
Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Process Sealed
Illumination	Non-Illuminated
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	Gull Wing
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

G3T12A Series

Part	Switch Function	Circuit	Mounting Type	Voltage Rating - AC	Illumination	Current Rating (Amps)	Actuator Type	Actuator Material	Electrical Life	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Voltage Rating - DC	Features	Bushing Thread
NKK Switches G3T12AH-R	On-On	SPDT	Surface Mount Right Angle	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded
NKK Switches G3T12AP-S	On-On	SPDT	Surface Mount	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded
NKK Switches G3T12AH	On-On	SPDT	Surface Mount Right Angle	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded
NKK Switches G3T12AP	On-On	SPDT	Surface Mount	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.05
		10	$ 5.45
		25	$ 5.18
		50	$ 4.96
		100	$ 4.80
		250	$ 4.55
	Digi-Reel®	1	$ 6.05
		10	$ 5.45
		25	$ 5.18
		50	$ 4.96
		100	$ 4.80
		250	$ 4.55
	Tape & Reel (TR)	500	$ 4.20
		1000	$ 4.01
Newark	Each (Supplied on Cut Tape)	250	$ 6.92

Description

General part information

G3T12A Series

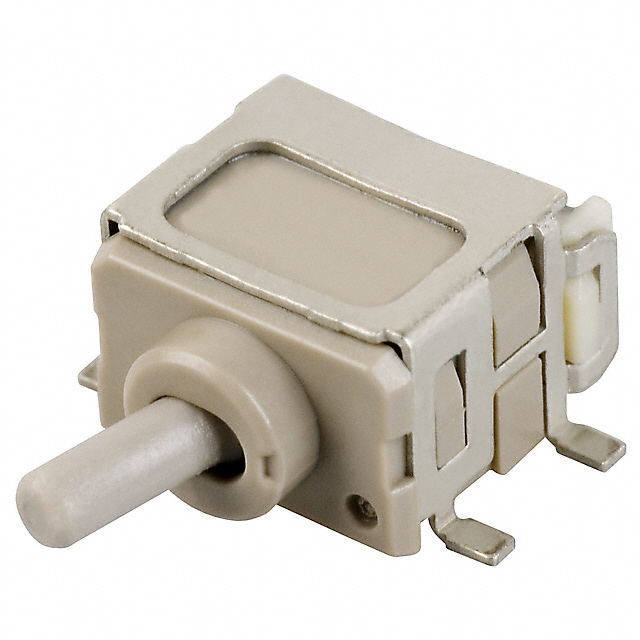

The G3T12AH-R is a SPDT non-illuminated process sealed ultra-miniature SMT Toggle Switch with ON-None-ON switch function and gull wing for right-angle-mount solder switch terminal. It has gold-plated phosphor bronze stationary, movable contacts and terminals, nitrile butadiene rubber sealing rings, polyphenylene sulphide base, actuator and case. The ultra-miniature size allows high density mounting and extremely light weight of 0.6 gram makes these switches ideal for handheld equipment. Heat resistant resin used for housing, base and lever allows vapour phase and infrared convection reflow soldering. The combination of design features achieves total seal and allows automated processing techniques, including flux cleaning procedures one-piece bushing and housing, rubber seals surrounding actuator and base, epoxy at joint of case and base and moulded-in, epoxy-sealed terminals. The gull-wing terminals provide mechanical stability during soldering and simplified solder joint inspection.
