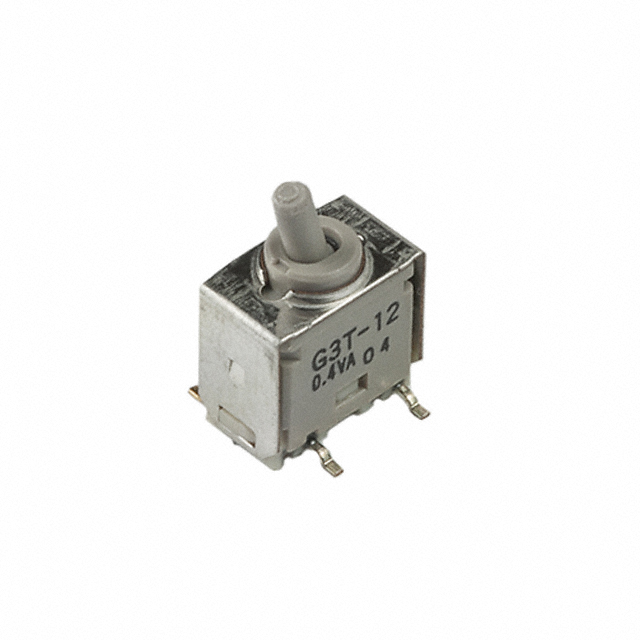

G3T12AP-S

Active

NKK Switches

TOGGLE SWITCH, ULTRA MINIATURE, ON-NONE-ON, SPDT, NON ILLUMINATED, G3T SERIES, SURFACE MOUNT

Search across all available documentation for this part.

Active

NKK Switches

TOGGLE SWITCH, ULTRA MINIATURE, ON-NONE-ON, SPDT, NON ILLUMINATED, G3T SERIES, SURFACE MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Circuit	Mounting Type	Voltage Rating - AC	Illumination	Current Rating (Amps)	Actuator Type	Actuator Material	Electrical Life	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Voltage Rating - DC	Features	Bushing Thread
NKK Switches G3T12AH-R	On-On	SPDT	Surface Mount Right Angle	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded
NKK Switches G3T12AP-S	On-On	SPDT	Surface Mount	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded
NKK Switches G3T12AH	On-On	SPDT	Surface Mount Right Angle	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded
NKK Switches G3T12AP	On-On	SPDT	Surface Mount	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Surface Mount
