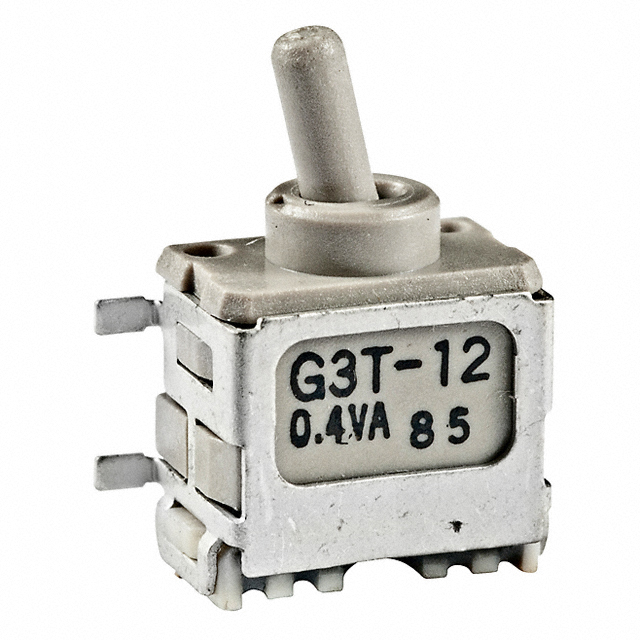

G3T12AH

Active

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Circuit	Mounting Type	Voltage Rating - AC	Illumination	Current Rating (Amps)	Actuator Type	Actuator Material	Electrical Life	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Voltage Rating - DC	Features	Bushing Thread
NKK Switches G3T12AH-R	On-On	SPDT	Surface Mount Right Angle	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded
NKK Switches G3T12AP-S	On-On	SPDT	Surface Mount	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded
NKK Switches G3T12AH	On-On	SPDT	Surface Mount Right Angle	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded
NKK Switches G3T12AP	On-On	SPDT	Surface Mount	28 V	Non-Illuminated	0.4 VA	Standard Round	Polyphenylene Sulfide (PPS)	50000 Cycles	Gull Wing	-30 ░C	85 °C	3.81 mm	28 V	Process Sealed	Unthreaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Surface Mount, Right Angle
