V-1100-SMD/B
ActiveAssmann WSW Components

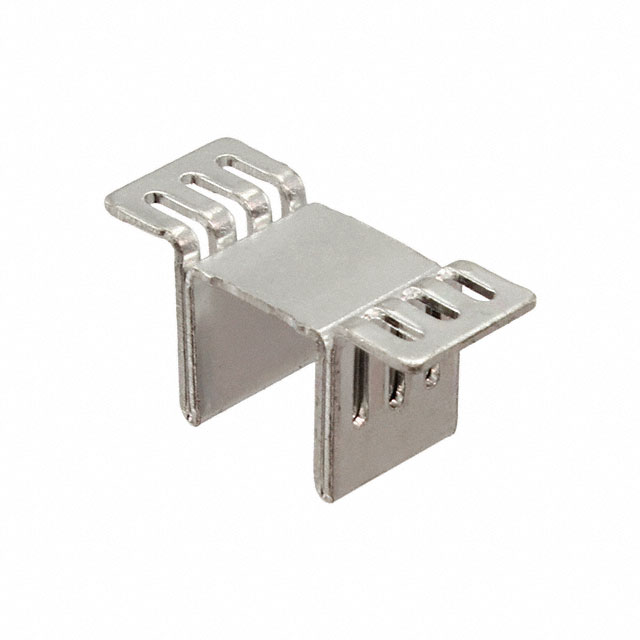

HEAT SINK PASSIVE SMD COPPER 25K/W TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V-1100-SMD/B
ActiveAssmann WSW Components
HEAT SINK PASSIVE SMD COPPER 25K/W TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V-1100-SMD/B |
|---|---|
| Attachment Method | SMD Pad |
| Fin Height [z] | 9.91 mm |
| Fin Height [z] | 0.39 in |
| Length [x] | 8.13 mm |
| Length [x] | 0.32 in |
| Material | Copper |
| Material Finish | Tin |
| Package Cooled | TO-252 |
| Package Cooled | DPak |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Natural | 25 °C/W |
| Type | Top Mount |
| Width [y] | 0.79 " |
| Width [y] | 20.07 mm |
