V-1100-SMD/B-L
ActiveAssmann WSW Components
HEAT SINK COPPER DPAK TO-252
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V-1100-SMD/B-L
ActiveAssmann WSW Components
HEAT SINK COPPER DPAK TO-252
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V-1100-SMD/B-L |
|---|---|
| Attachment Method | SMD Pad |
| Fin Height [z] | 9.91 mm |
| Fin Height [z] | 0.39 in |
| Length [x] | 8.13 mm |
| Length [x] | 0.32 in |
| Material | Copper |
| Material Finish | Tin |
| Package Cooled | TO-252 |
| Package Cooled | DPak |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Natural | 25 °C/W |
| Type | Top Mount |
| Width [y] | 0.79 " |
| Width [y] | 20.07 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.57 | |
| 10 | $ 0.50 | |||
| 25 | $ 0.48 | |||
| 50 | $ 0.46 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.36 | |||
| 625 | $ 0.40 | |||
| 1000 | $ 0.35 | |||
| 1250 | $ 0.39 | |||
| 5000 | $ 0.36 | |||
Description
General part information
V-1100-S Series

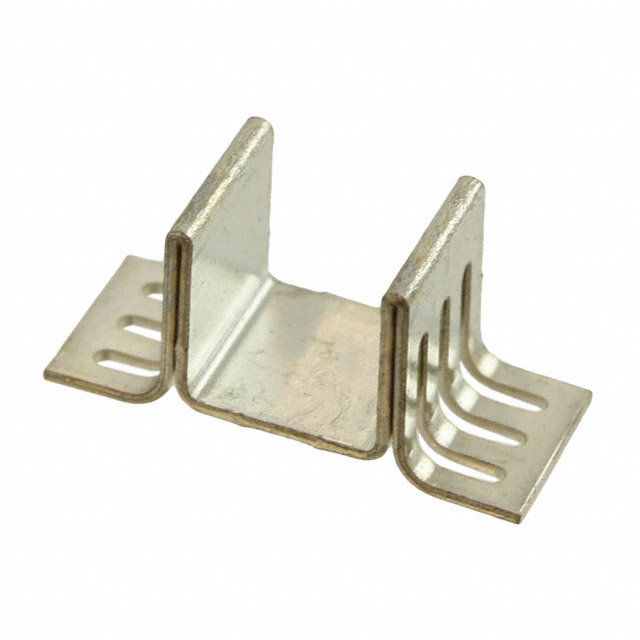

Heat Sink TO-252 (DPak) Copper Top Mount
Documents
Technical documentation and resources
