V-1100-SMD/A-L
ActiveAssmann WSW Components

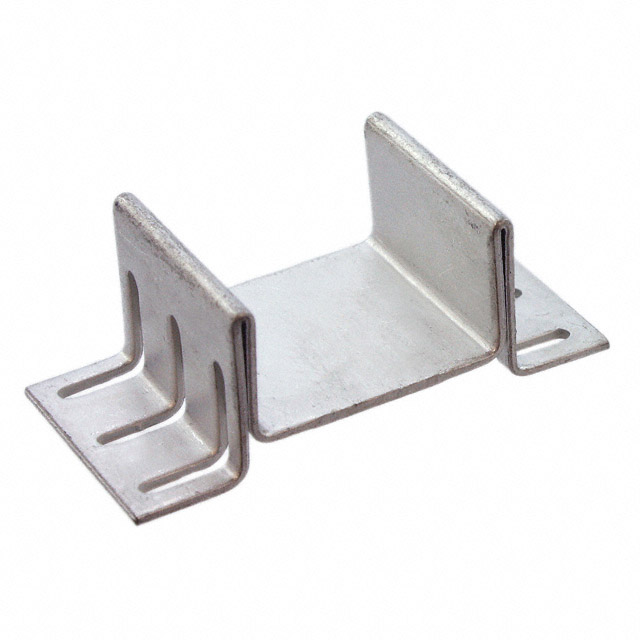

HEATSINK TO-263 12.70X26.20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V-1100-SMD/A-L |
|---|---|
| Attachment Method | SMD Pad |
| Fin Height [z] | 9.91 mm |
| Fin Height [z] | 0.39 in |
| Length | 0.5 in |
| Length | 12.7 mm |
| Material | Copper |
| Material Finish | Tin |
| Package Cooled | TO-263 (D˛Pak) |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Natural | 23 °C/W |
| Type | Top Mount |
| Width [y] | 1.031 " |
| Width [y] | 26.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.51 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.43 | |||
| 50 | $ 0.42 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.36 | |||
| 5000 | $ 0.33 | |||
Description
General part information
V-1100-S Series
Heat Sink TO-263 (D˛Pak) Copper Top Mount
