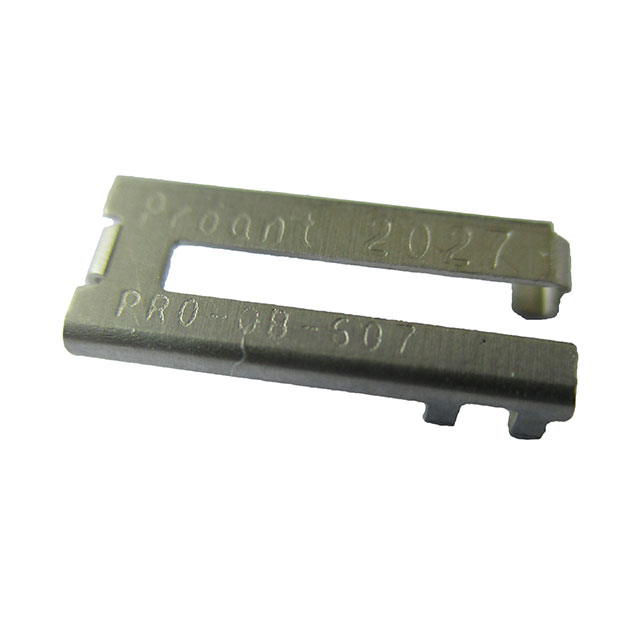

PRO-OB-607

Active

Abracon LLC

ANT ONBOARD SMD 2400 STAMPED

Search across all available documentation for this part.

Active

Abracon LLC

ANT ONBOARD SMD 2400 STAMPED

Technical Specifications

Parameters and characteristics for this part

Specification	PRO-OB-607

Antenna Type	Stamped Metal
Applications	Bluetooth, IoT Devices, Wi-Fi, Zigbee™, WLAN
Frequency Range [Max]	2.497 GHz
Frequency Range [Min]	2.4 GHz
Gain	-1 dBi
Height (Max) [Max]	2 mm
Height (Max) [Max]	0.079 in
Mounting Type	Surface Mount
Number of Bands	1
Return Loss	-6.3 dB
RF Family/Standard	General ISM, WiFi, 802.15.4
Termination	Solder

Part	Return Loss	Height (Max) [Max]	Height (Max) [Max]	Frequency Group [Min]	Frequency Group [Max]	RF Family/Standard	Applications	Frequency Range [Min]	Frequency Range [Max]	Antenna Type	Termination	Mounting Type	Frequency (Center/Band)	Number of Bands	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Frequency Group	Frequency Group	Gain
Abracon LLC PRO-OB-518	-6 dB	5 mm	0.197 in	2 GHz 300 MHz	1 GHz 3 GHz	802.15.4	6LoWPAN Zigbee™	2.4 GHz 860 MHz	2.5 GHz 870 MHz	Stamped Metal	Solder	Surface Mount	2.4 GHz 868 MHz	2
Abracon LLC PRO-OB-536	-8 dB			2 GHz	3 GHz	802.15.4 Bluetooth WiFi	Bluetooth WLAN Zigbee™	2.4 GHz 5.15 GHz	2.5 GHz 5.85 GHz	Stamped Metal	Solder	Surface Mount	2.4 GHz 5.5 GHz	2	0.098 in	2.5 mm	4 GHz
Abracon LLC PRO-OB-572	-6 dB	10 mm	0.394 in			Cellular	GSM UMTS	1.71 GHz 791 MHz	2.17 GHz 960 MHz	Stamped Metal	Solder	Surface Mount	1.94 GHz 875.5 MHz	2				Wide Band
Abracon LLC PRO-OB-607	-6.3 dB	2 mm	0.079 in			802.15.4 General ISM WiFi	Bluetooth IoT Devices Wi-Fi WLAN Zigbee™	2.4 GHz	2.497 GHz	Stamped Metal	Solder	Surface Mount		1					-1 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Bluetooth, IoT Devices, Wi-Fi, WLAN, Zigbee™ Stamped Metal Solder Surface Mount
