PRO-OB-536
ActiveAbracon LLC

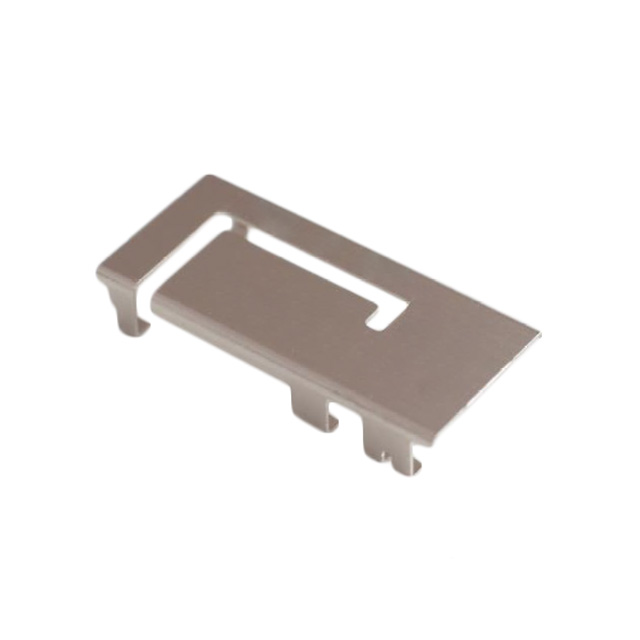

ANTENNA STAMPED METAL 2.7DBI GAIN 2500MHZ/5850MHZ 5-PIN SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
PRO-OB-536
ActiveAbracon LLC
ANTENNA STAMPED METAL 2.7DBI GAIN 2500MHZ/5850MHZ 5-PIN SMD T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PRO-OB-536 |
|---|---|
| Antenna Type | Stamped Metal |
| Applications | Bluetooth, WLAN, Zigbee™ |
| Frequency (Center/Band) | 5.5 GHz, 2.4 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.85 GHz, 2.5 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz |
| Height (Max) [Max] [z] | 0.098 in |
| Height (Max) [Max] [z] | 2.5 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Return Loss | -8 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.99 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.51 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.31 | |||
| Digi-Reel® | 1 | $ 0.99 | ||
| 10 | $ 0.61 | |||
| 25 | $ 0.51 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.31 | |||
| Tape & Reel (TR) | 1000 | $ 0.28 | ||
| 2000 | $ 0.26 | |||
| 3000 | $ 0.25 | |||
| 5000 | $ 0.24 | |||
| 7000 | $ 0.23 | |||
| 10000 | $ 0.22 | |||
| 25000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
Description
General part information
PRO-OB Series
RF ANTENNA Bluetooth, WLAN, Zigbee™ Stamped Metal Solder Surface Mount
