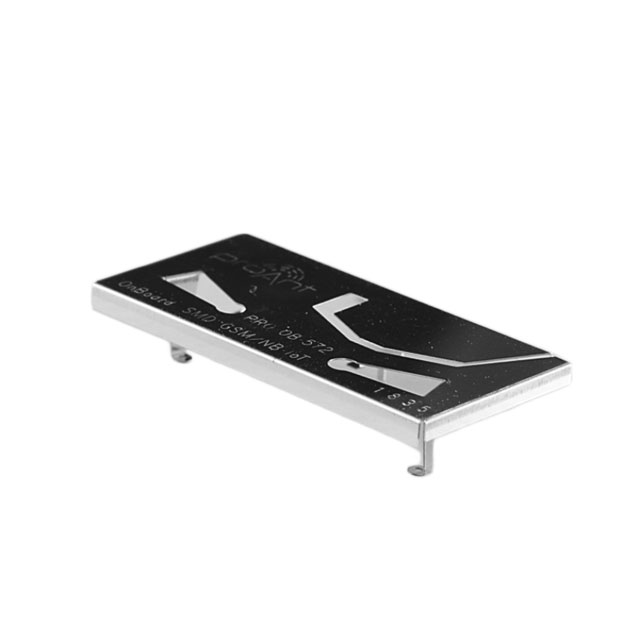

PRO-OB-572

Active

Abracon LLC

ANT GSM/NB-IOT SMD

Search across all available documentation for this part.

Active

Abracon LLC

ANT GSM/NB-IOT SMD

Technical Specifications

Parameters and characteristics for this part

Part	Return Loss	Height (Max) [Max]	Height (Max) [Max]	Frequency Group [Min]	Frequency Group [Max]	RF Family/Standard	Applications	Frequency Range [Min]	Frequency Range [Max]	Antenna Type	Termination	Mounting Type	Frequency (Center/Band)	Number of Bands	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Frequency Group	Frequency Group	Gain
Abracon LLC PRO-OB-518	-6 dB	5 mm	0.197 in	2 GHz 300 MHz	1 GHz 3 GHz	802.15.4	6LoWPAN Zigbee™	2.4 GHz 860 MHz	2.5 GHz 870 MHz	Stamped Metal	Solder	Surface Mount	2.4 GHz 868 MHz	2
Abracon LLC PRO-OB-536	-8 dB			2 GHz	3 GHz	802.15.4 Bluetooth WiFi	Bluetooth WLAN Zigbee™	2.4 GHz 5.15 GHz	2.5 GHz 5.85 GHz	Stamped Metal	Solder	Surface Mount	2.4 GHz 5.5 GHz	2	0.098 in	2.5 mm	4 GHz
Abracon LLC PRO-OB-572	-6 dB	10 mm	0.394 in			Cellular	GSM UMTS	1.71 GHz 791 MHz	2.17 GHz 960 MHz	Stamped Metal	Solder	Surface Mount	1.94 GHz 875.5 MHz	2				Wide Band
Abracon LLC PRO-OB-607	-6.3 dB	2 mm	0.079 in			802.15.4 General ISM WiFi	Bluetooth IoT Devices Wi-Fi WLAN Zigbee™	2.4 GHz	2.497 GHz	Stamped Metal	Solder	Surface Mount		1					-1 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GSM, UMTS Stamped Metal Solder Surface Mount

Technical documentation and resources

No documents available
