19440031640

Active

HARTING Technology Group

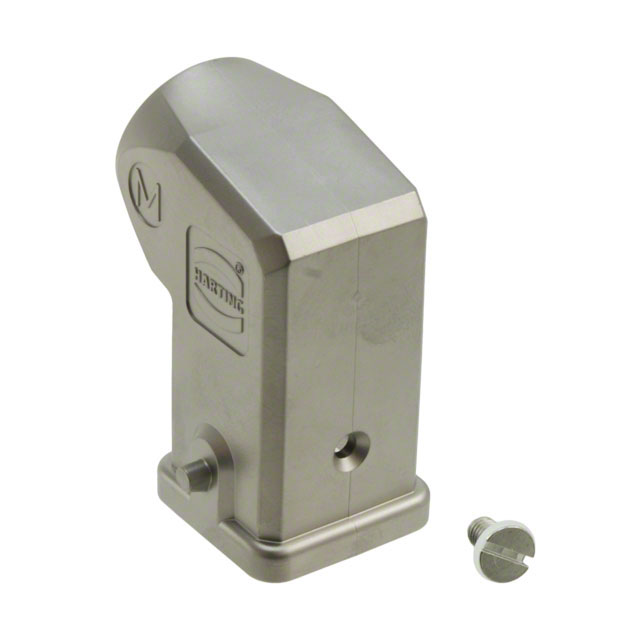

3A INOX (STAINLESS STEEL) HOOD ANGLED ENTRY, M20

Search across all available documentation for this part.

Active

HARTING Technology Group

3A INOX (STAINLESS STEEL) HOOD ANGLED ENTRY, M20

Technical Specifications

Parameters and characteristics for this part

Part	Housing Material	Lock Location	Connector Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Style	Thread Size	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Features
HARTING Technology Group 19440031440	Stainless Steel	Locking Clip (1) on Base Bottom	Hood	26.7 mm	1.051 in	2.356 in	59.85 mm	1.051 in	26.7 mm	Top Entry	M20	3 A	IP67 - Dust Tight Waterproof	125 °C	-40 °C
HARTING Technology Group 19440031643	Stainless Steel	Locking Clip (1) on Base Bottom	Hood	27 mm	1.063 in	2.126 in	54 mm	1.063 in	27 mm	Side Entry	M20	3 A	IP67 - Dust Tight Waterproof	125 °C	-40 °C
HARTING Technology Group 19440031750	Stainless Steel	Locking Clip (1) on Hood Top	Hood/Housing - Coupling	24.1 mm	0.949 "	2.244 "	57 mm	0.949 "	24.1 mm		M20	3 A	IP67 - Dust Tight Waterproof	125 °C	-40 °C	Cable to Cable
HARTING Technology Group 19440031640	Stainless Steel	Locking Clip (1) on Base Bottom	Hood	27 mm	1.063 in	2.13 "	54.1 mm	1.063 in	27 mm	Side Entry	M20	3 A	IP67 - Dust Tight Waterproof	125 °C	-40 °C
HARTING Technology Group 19440031150	Stainless Steel	Locking Clip (1) on Base Bottom	Hood							Top Entry	M20	3 A	IP65 IP67	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M20 3A IP67 - Dust Tight, Waterproof
