19440031750
ActiveHARTING Technology Group

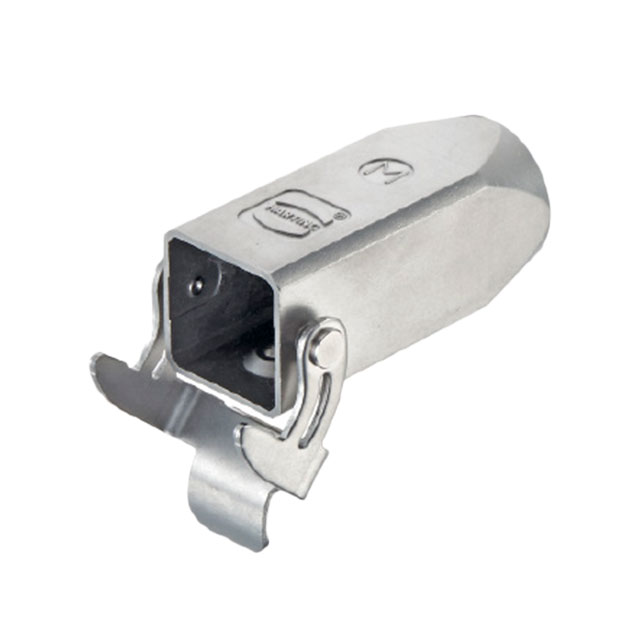

HEAVY DUTY CONNECTOR, BASE, CABLE MOUNT, STAINLESS STEEL BODY, 1 LEVER, 3A
Deep-Dive with AI
Search across all available documentation for this part.
19440031750
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, BASE, CABLE MOUNT, STAINLESS STEEL BODY, 1 LEVER, 3A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19440031750 |
|---|---|
| Connector Type | Hood/Housing - Coupling |
| Features | Cable to Cable |
| Housing Material | Stainless Steel |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Lock Location | Locking Clip (1) on Hood Top |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 3 A |
| Size / Dimension [x] | 24.1 mm |
| Size / Dimension [x] | 0.949 " |
| Size / Dimension [y] | 24.1 mm |
| Size / Dimension [y] | 0.949 " |
| Size / Dimension [z] | 2.244 " |
| Size / Dimension [z] | 57 mm |
| Thread Size | M20 |
19440031 Series
| Part | Housing Material | Lock Location | Connector Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Style | Thread Size | Size | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | Stainless Steel | Locking Clip (1) on Base Bottom | Hood | 26.7 mm | 1.051 in | 2.356 in | 59.85 mm | 1.051 in | 26.7 mm | Top Entry | M20 | 3 A | IP67 - Dust Tight Waterproof | 125 °C | -40 °C | |
HARTING Technology Group | Stainless Steel | Locking Clip (1) on Base Bottom | Hood | 27 mm | 1.063 in | 2.126 in | 54 mm | 1.063 in | 27 mm | Side Entry | M20 | 3 A | IP67 - Dust Tight Waterproof | 125 °C | -40 °C | |
HARTING Technology Group | Stainless Steel | Locking Clip (1) on Hood Top | Hood/Housing - Coupling | 24.1 mm | 0.949 " | 2.244 " | 57 mm | 0.949 " | 24.1 mm | M20 | 3 A | IP67 - Dust Tight Waterproof | 125 °C | -40 °C | Cable to Cable | |
HARTING Technology Group | Stainless Steel | Locking Clip (1) on Base Bottom | Hood | 27 mm | 1.063 in | 2.13 " | 54.1 mm | 1.063 in | 27 mm | Side Entry | M20 | 3 A | IP67 - Dust Tight Waterproof | 125 °C | -40 °C | |
HARTING Technology Group | Stainless Steel | Locking Clip (1) on Base Bottom | Hood | Top Entry | M20 | 3 A | IP65 IP67 | 125 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19440031 Series
Hood/Housing - Coupling Connector M20 3A IP67 - Dust Tight, Waterproof
