19440031643

Active

HARTING Technology Group

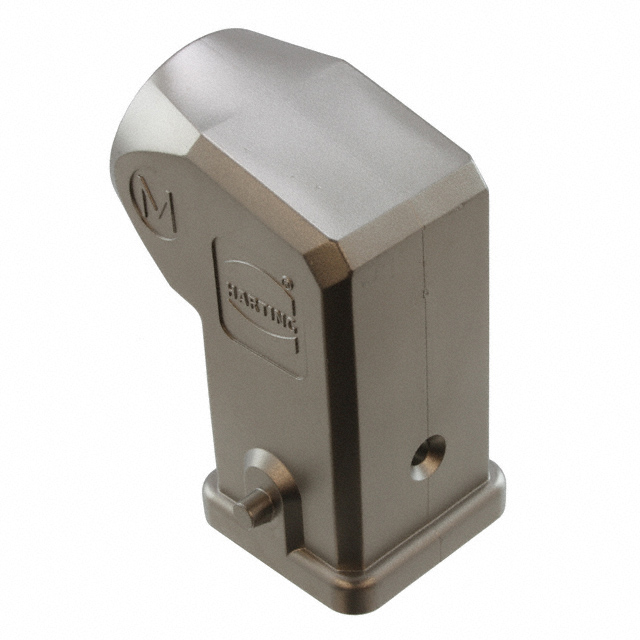

3A INOX (STAINLESS STEEL) HOOD ANGLED ENTRY, M20 W/ SEALING

Search across all available documentation for this part.

Active

HARTING Technology Group

3A INOX (STAINLESS STEEL) HOOD ANGLED ENTRY, M20 W/ SEALING

Technical Specifications

Parameters and characteristics for this part

Part	Housing Material	Lock Location	Connector Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Style	Thread Size	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Features
HARTING Technology Group 19440031440	Stainless Steel	Locking Clip (1) on Base Bottom	Hood	26.7 mm	1.051 in	2.356 in	59.85 mm	1.051 in	26.7 mm	Top Entry	M20	3 A	IP67 - Dust Tight Waterproof	125 °C	-40 °C
HARTING Technology Group 19440031643	Stainless Steel	Locking Clip (1) on Base Bottom	Hood	27 mm	1.063 in	2.126 in	54 mm	1.063 in	27 mm	Side Entry	M20	3 A	IP67 - Dust Tight Waterproof	125 °C	-40 °C
HARTING Technology Group 19440031750	Stainless Steel	Locking Clip (1) on Hood Top	Hood/Housing - Coupling	24.1 mm	0.949 "	2.244 "	57 mm	0.949 "	24.1 mm		M20	3 A	IP67 - Dust Tight Waterproof	125 °C	-40 °C	Cable to Cable
HARTING Technology Group 19440031640	Stainless Steel	Locking Clip (1) on Base Bottom	Hood	27 mm	1.063 in	2.13 "	54.1 mm	1.063 in	27 mm	Side Entry	M20	3 A	IP67 - Dust Tight Waterproof	125 °C	-40 °C
HARTING Technology Group 19440031150	Stainless Steel	Locking Clip (1) on Base Bottom	Hood							Top Entry	M20	3 A	IP65 IP67	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M20 3A IP67 - Dust Tight, Waterproof
