Technical Specifications
Parameters and characteristics for this part
| Specification | STK57FU394AG-E |
|---|---|
| Applications | DC Motors, AC Motors, General Purpose |
| Current - Output / Channel [custom] | 15 A |
| Current - Peak Output | 30 A |
| Fault Protection | UVLO, Current Limiting |
| Features | Bootstrap Circuit |
| Interface | Logic |
| Load Type | Inductive |
| Mounting Type | Through Hole |
| Operating Temperature | 150 °C |
| Output Configuration | Half Bridge (3) |
| Package / Case | 35-SSIP, 25 Leads |
| Supplier Device Package | 35-SIP/SIP2A-3 |
| Technology | IGBT |
| Voltage - Load | 400 V |
| Voltage - Supply [Max] | 17.5 V |
| Voltage - Supply [Min] | 12.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STK57FU394AG-E Series

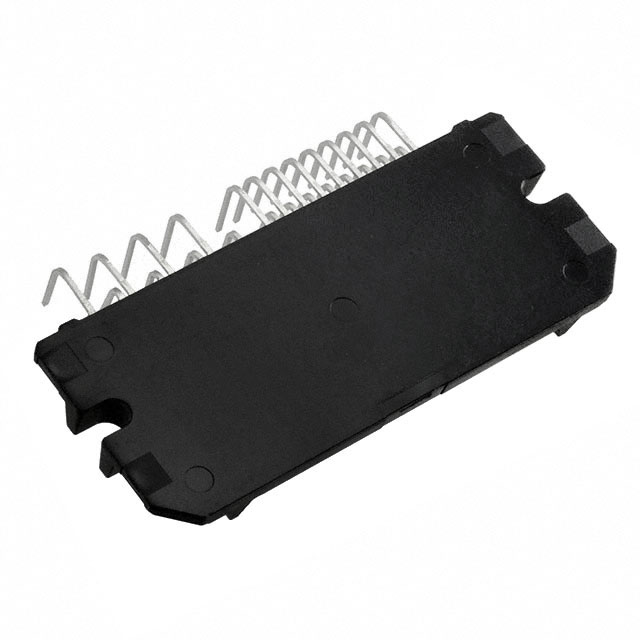

The STK57FU394AG-E is a fully-integrated PFC and inverter power module consisting of a high-voltage driver, six motor drive IGBTs, one PFC IGBT, one PFC rectifier and a thermistor, suitable for driving permanent magnet synchronous (PMSM) motors, brushless-DC (BLDC) motors and AC asynchronous motors. The IGBTs are configured in a 3-phase bridge with separate emitter connections for the lower legs for maximum flexibility in the choice of control algorithm. An internal comparator and reference connected to the over-current protection circuit allows the designer to set individual over-current protection levels for the PFC and the inverter stages. Additionally, the power stage has a full range of protection functions including crossconduction protection, external shutdown and under-voltage lockout functions.
