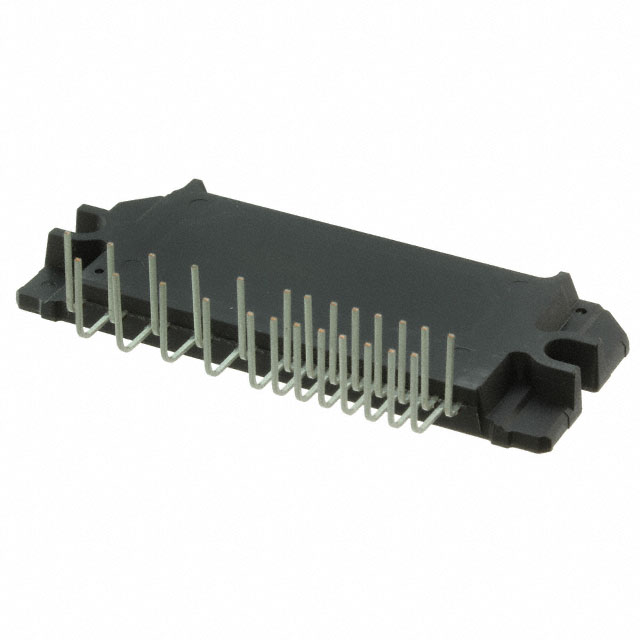

STK57FU394A-E

Obsolete

ON Semiconductor

IC HALF BRIDGE DRIVER 15A 35SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STK57FU394A-E

Obsolete

ON Semiconductor

IC HALF BRIDGE DRIVER 15A 35SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STK57FU394A-E

Applications	AC Motors
Current - Output / Channel [custom]	15 A
Current - Peak Output	30 A
Load Type	Inductive
Mounting Type	Through Hole
Operating Temperature	150 °C
Output Configuration	Half Bridge (3)
Package / Case	35-SSIP, 25 Leads, Formed Leads
Supplier Device Package	35-SIP
Technology	Bipolar
Voltage - Load	400 V
Voltage - Supply [Max]	17 V
Voltage - Supply [Min]	12.5 V

STK57FU394AG-E Series

Intelligent Power Module (IPM), 2-in-1 PFC and Inverter, 600 V, 15 A

Part	Fault Protection	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Load Type	Voltage - Load	Package / Case	Current - Peak Output	Technology	Output Configuration	Interface	Supplier Device Package	Applications	Current - Output / Channel [custom]	Mounting Type	Features	Operating Temperature
ON Semiconductor STK57FU391A-E	UVLO	150 °C	-20 °C	12.5 V	17.5 V	Inductive	400 V	35-SSIP 25 Leads Formed Leads	30 A	IGBT	Half Bridge (3)	Logic	35-SIP	AC Motors	15 A	Through Hole	Bootstrap Circuit
ON Semiconductor STK57FU394A-E				12.5 V	17 V	Inductive	400 V	35-SSIP 25 Leads Formed Leads	30 A	Bipolar	Half Bridge (3)		35-SIP	AC Motors	15 A	Through Hole		150 °C
ON Semiconductor STK57FU394AG-E	Current Limiting UVLO			12.5 V	17.5 V	Inductive	400 V	35-SSIP 25 Leads	30 A	IGBT	Half Bridge (3)	Logic	35-SIP/SIP2A-3	AC Motors DC Motors General Purpose	15 A	Through Hole	Bootstrap Circuit	150 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

STK57FU394AG-E Series

The STK57FU394AG-E is a fully-integrated PFC and inverter power module consisting of a high-voltage driver, six motor drive IGBTs, one PFC IGBT, one PFC rectifier and a thermistor, suitable for driving permanent magnet synchronous (PMSM) motors, brushless-DC (BLDC) motors and AC asynchronous motors. The IGBTs are configured in a 3-phase bridge with separate emitter connections for the lower legs for maximum flexibility in the choice of control algorithm. An internal comparator and reference connected to the over-current protection circuit allows the designer to set individual over-current protection levels for the PFC and the inverter stages. Additionally, the power stage has a full range of protection functions including crossconduction protection, external shutdown and under-voltage lockout functions.
