UB215SKG036CF-4JCF13

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUB2 Indicators Datasheet

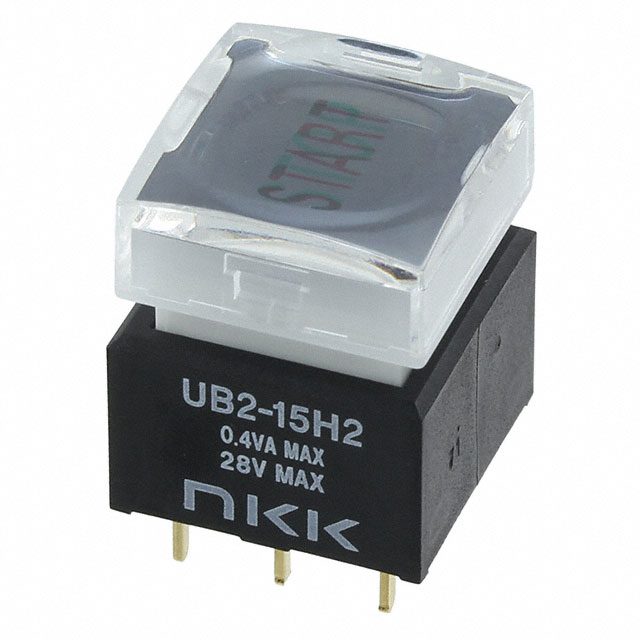

UB215SKG036CF-4JCF13

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsUB2 Indicators Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB215SKG036CF-4JCF13

Actuator Marking	START/STOP (Alternating)
Actuator Type	Button, Alternating Legend, Square
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2.1 VDC, 3.5 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB215SK Series

Part	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Type	Color - Actuator/Cap	Voltage Rating - AC	Actuator Type	Mounting Type	Actuator Marking	Electrical Life	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - DC	Termination Style	Switch Function	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches UB215SKG036CF-4JCF13	0.4 VA	SPDT	2.1 VDC 3.5 VDC	Illuminated Standard	Clear	28 V	Alternating Legend Button Square	Through Hole	START/STOP (Alternating)	200000 Cycles	Green/Red LED	50 °C	-25 °C	1000000 Cycles	28 V	PC Pin	On-Mom
NKK Switches UB215SKW035D-1JB	5 A	SPDT	2 VDC	Illuminated Standard	Clear	125 V	Button Square	Through Hole	No Marking	10000 Cycles	Amber LED	50 °C	-25 °C	1000000 Cycles	30 V	PC Pin	On-Mom	Sealed - Fully
NKK Switches UB215KKW01N	5 A	SPDT		Standard		125 V	Plunger for Cap	Panel Mount Snap-In	No Marking	10000 Cycles		70 °C	-25 °C	1000000 Cycles	30 V	Solder Lug	On-Mom	RTV Adhesive Sealant on Terminals	17.4 mm	17.4 mm
NKK Switches UB226SKG035F	0.4 VA	DPDT	2.1 VDC	Illuminated Standard		28 V	Plunger for Cap	Through Hole	No Marking	200000 Cycles	Green LED	50 °C	-25 °C	200000 Cycles	28 V	PC Pin	On-On	Sealed - Fully
NKK Switches UB215SKW036CF-3JB	5 A	SPDT	2.1 VDC 3.5 VDC	Illuminated Standard	Clear	125 V	Button Square	Through Hole	No Marking	10000 Cycles	Green/Red LED	50 °C	-25 °C	1000000 Cycles	30 V	PC Pin	On-Mom	Sealed - Fully
NKK Switches UB215SKW035D-3JD	5 A	SPDT	2 VDC	Illuminated Standard	Clear	125 V	Button Square	Through Hole	No Marking	10000 Cycles	Amber LED	50 °C	-25 °C	1000000 Cycles	30 V	PC Pin	On-Mom	Sealed - Fully
NKK Switches UB215SKW036CF-2B	5 A	SPDT	2.1 VDC 3.5 VDC	Illuminated Standard	White	125 V	Button Square	Through Hole	No Marking	10000 Cycles	Green/Red LED	50 °C	-25 °C	1000000 Cycles	30 V	PC Pin	On-Mom	Sealed - Fully
NKK Switches UB215KKW015D	5 A	SPDT	2 VDC	Illuminated Standard		125 V	Plunger for Cap	Panel Mount Snap-In	No Marking	10000 Cycles	Amber LED	50 °C	-25 °C	1000000 Cycles	30 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	17.4 mm	17.4 mm
NKK Switches UB215SKG035F-1JF	0.4 VA	SPDT	2.1 VDC	Illuminated Standard	Clear	28 V	Button Square	Through Hole	No Marking	200000 Cycles	Green LED	50 °C	-25 °C	1000000 Cycles	28 V	PC Pin	On-Mom	Sealed
NKK Switches UB215SKW035C-1JB	5 A	SPDT	1.85 VDC	Illuminated Standard	Clear	125 V	Button Square	Through Hole	No Marking	10000 Cycles	LED Red	50 °C	-25 °C	1000000 Cycles	30 V	PC Pin	On-Mom	Sealed - Fully
