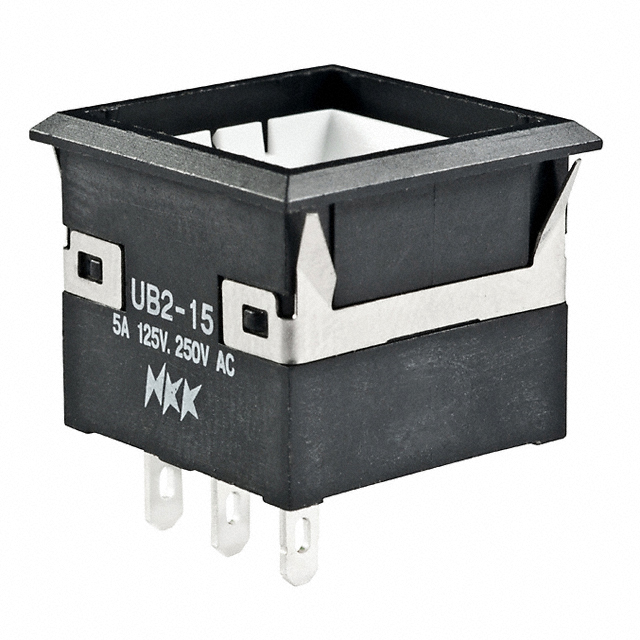

UB215KKW01N
ActiveNKK Switches
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 5A/250VAC; 5A/30VDC; ON-(ON)
Deep-Dive with AI
Search across all available documentation for this part.
UB215KKW01N
ActiveNKK Switches
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 5A/250VAC; 5A/30VDC; ON-(ON)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UB215KKW01N |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Electrical Life | 10000 Cycles |
| Features | RTV Adhesive Sealant on Terminals |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 17.4 mm |
| Panel Cutout Dimensions [y] | 17.4 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
UB215KK Series
| Part | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Electrical Life | Illumination Voltage (Nominal) | Actuator Type | Actuator Marking | Voltage Rating - DC | Mounting Type | Voltage Rating - AC | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Current Rating (Amps) | Switch Function | Color - Actuator/Cap | Termination Style | Type | Features | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 17.4 mm | 17.4 mm | 10000 Cycles | 2 VDC 2.8 VDC | Alternating Legend Button Square | ON/OFF | 30 V | Panel Mount Snap-In | 125 V | SPDT | 50 °C | -25 °C | 1000000 Cycles | 5 A | On-Mom | Clear | Solder Lug | Illuminated Standard | ||
NKK Switches | 17.4 mm | 17.4 mm | 200000 Cycles | Plunger for Cap | No Marking | 28 V | Panel Mount Snap-In | 28 V | SPDT | 70 °C | -25 °C | 1000000 Cycles | 0.4 VA | On-Mom | Solder Lug | Standard | Pulse 300 ms | |||
NKK Switches | 17.4 mm | 17.4 mm | 10000 Cycles | Plunger for Cap | No Marking | 30 V | Panel Mount Snap-In | 125 V | SPDT | 70 °C | -25 °C | 1000000 Cycles | 5 A | On-Mom | Solder Lug | Standard | RTV Adhesive Sealant on Terminals | |||
NKK Switches | 17.4 mm | 17.4 mm | 200000 Cycles | 1.85 VDC | Button Square | No Marking | 28 V | Panel Mount Snap-In | 28 V | SPDT | 50 °C | -25 °C | 1000000 Cycles | 0.4 VA | On-Mom | Clear | Solder Lug | Illuminated Standard | Process Sealed | LED Red |
NKK Switches | 17.4 mm | 17.4 mm | 200000 Cycles | 2.1 VDC 3.5 VDC | Alternating Legend Button Square | ON/OFF | 28 V | Panel Mount Snap-In | 28 V | SPDT | 50 °C | -25 °C | 1000000 Cycles | 0.4 VA | On-Mom | Clear | Solder Lug | Illuminated Standard | Green/Red LED | |
NKK Switches | 17.4 mm | 17.4 mm | 200000 Cycles | 1.85 VDC | Button Square | No Marking | 28 V | Panel Mount Snap-In | 28 V | SPDT | 50 °C | -25 °C | 1000000 Cycles | 0.4 VA | On-Mom | Clear | Solder Lug | Illuminated Standard | Process Sealed | LED Red |
NKK Switches | 17.4 mm | 17.4 mm | 200000 Cycles | 2 VDC | Plunger for Cap | No Marking | 28 V | Panel Mount Snap-In | 28 V | SPDT | 50 °C | -25 °C | 1000000 Cycles | 0.4 VA | On-Mom | Solder Lug | Illuminated Standard | Process Sealed | Amber LED | |
NKK Switches | 17.4 mm | 17.4 mm | 10000 Cycles | 2.1 VDC 3.5 VDC | Alternating Legend Button Square | ON/OFF | 30 V | Panel Mount Snap-In | 125 V | SPDT | 50 °C | -25 °C | 1000000 Cycles | 5 A | On-Mom | Clear | Solder Lug | Illuminated Standard | Green/Red LED | |
NKK Switches | 17.4 mm | 17.4 mm | 10000 Cycles | 3.5 VDC | Button Square | No Marking | 30 V | Panel Mount Snap-In | 125 V | SPDT | 50 °C | -25 °C | 1000000 Cycles | 5 A | On-Mom | Clear | Solder Lug | Illuminated Standard | RTV Adhesive Sealant on Terminals | Green LED |
NKK Switches | 17.4 mm | 17.4 mm | 200000 Cycles | 2 VDC 2.8 VDC | Alternating Legend Button Square | ON/OFF | 28 V | Panel Mount Snap-In | 28 V | SPDT | 50 °C | -25 °C | 1000000 Cycles | 0.4 VA | On-Mom | Clear | Solder Lug | Illuminated Standard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UB215KK Series
Pushbutton Switch SPDT Standard Panel Mount, Snap-In
