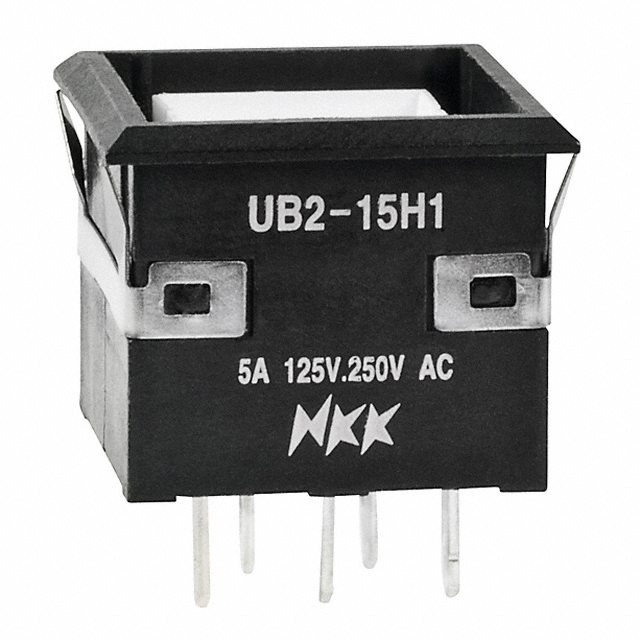

UB215KKW015D

Active

NKK Switches

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 5A/250VAC; 5A/30VDC; ON-(ON)

Deep-Dive with AI

DocumentsDatasheet UB2 Indicators

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB215KKW015D

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Epoxy Sealed Terminals
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	2 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	17.4 mm
Panel Cutout Dimensions [y]	17.4 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB215KK Series

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Electrical Life	Illumination Voltage (Nominal)	Actuator Type	Actuator Marking	Voltage Rating - DC	Mounting Type	Voltage Rating - AC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Current Rating (Amps)	Switch Function	Color - Actuator/Cap	Termination Style	Type	Features	Illumination Type, Color
NKK Switches UB215KKW016DG-4JDG11	17.4 mm	17.4 mm	10000 Cycles	2 VDC 2.8 VDC	Alternating Legend Button Square	ON/OFF	30 V	Panel Mount Snap-In	125 V	SPDT	50 °C	-25 °C	1000000 Cycles	5 A	On-Mom	Clear	Solder Lug	Illuminated Standard
NKK Switches UB215KKG01N	17.4 mm	17.4 mm	200000 Cycles		Plunger for Cap	No Marking	28 V	Panel Mount Snap-In	28 V	SPDT	70 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom		Solder Lug	Standard	Pulse 300 ms
NKK Switches UB215KKW01N	17.4 mm	17.4 mm	10000 Cycles		Plunger for Cap	No Marking	30 V	Panel Mount Snap-In	125 V	SPDT	70 °C	-25 °C	1000000 Cycles	5 A	On-Mom		Solder Lug	Standard	RTV Adhesive Sealant on Terminals
NKK Switches UB215KKG015C-3JB	17.4 mm	17.4 mm	200000 Cycles	1.85 VDC	Button Square	No Marking	28 V	Panel Mount Snap-In	28 V	SPDT	50 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom	Clear	Solder Lug	Illuminated Standard	Process Sealed	LED Red
NKK Switches UB215KKG016CF-5JCF11	17.4 mm	17.4 mm	200000 Cycles	2.1 VDC 3.5 VDC	Alternating Legend Button Square	ON/OFF	28 V	Panel Mount Snap-In	28 V	SPDT	50 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom	Clear	Solder Lug	Illuminated Standard		Green/Red LED
NKK Switches UB215KKG015C-3JF	17.4 mm	17.4 mm	200000 Cycles	1.85 VDC	Button Square	No Marking	28 V	Panel Mount Snap-In	28 V	SPDT	50 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom	Clear	Solder Lug	Illuminated Standard	Process Sealed	LED Red
NKK Switches UB215KKG015D	17.4 mm	17.4 mm	200000 Cycles	2 VDC	Plunger for Cap	No Marking	28 V	Panel Mount Snap-In	28 V	SPDT	50 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom		Solder Lug	Illuminated Standard	Process Sealed	Amber LED
NKK Switches UB215KKW016CF-4JCF11	17.4 mm	17.4 mm	10000 Cycles	2.1 VDC 3.5 VDC	Alternating Legend Button Square	ON/OFF	30 V	Panel Mount Snap-In	125 V	SPDT	50 °C	-25 °C	1000000 Cycles	5 A	On-Mom	Clear	Solder Lug	Illuminated Standard		Green/Red LED
NKK Switches UB215KKW016F-1JF	17.4 mm	17.4 mm	10000 Cycles	3.5 VDC	Button Square	No Marking	30 V	Panel Mount Snap-In	125 V	SPDT	50 °C	-25 °C	1000000 Cycles	5 A	On-Mom	Clear	Solder Lug	Illuminated Standard	RTV Adhesive Sealant on Terminals	Green LED
NKK Switches UB215KKG016DG-5JDG11	17.4 mm	17.4 mm	200000 Cycles	2 VDC 2.8 VDC	Alternating Legend Button Square	ON/OFF	28 V	Panel Mount Snap-In	28 V	SPDT	50 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom	Clear	Solder Lug	Illuminated Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.34
		10	$ 12.05
		25	$ 11.47
		50	$ 10.89
		100	$ 10.50
		250	$ 9.86
		500	$ 9.02
		1000	$ 7.97
Newark	Each	1	$ 24.79
		5	$ 23.55
		10	$ 21.82
		25	$ 19.91
		50	$ 17.23
		100	$ 16.08
		250	$ 14.65
TME	N/A	1	$ 16.16
		10	$ 15.42
		100	$ 13.81

Description

General part information

UB215KK Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

UB2 Indicators

Datasheet
