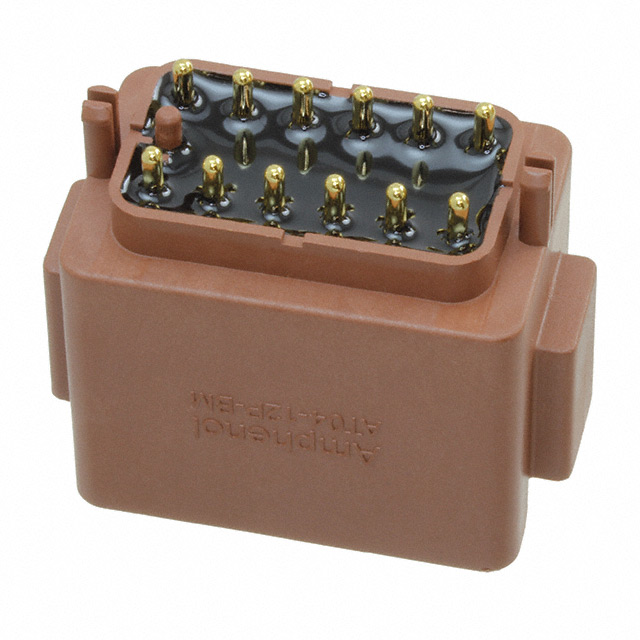

AT04-12PD-BM02
ActiveAmphenol Sine Systems Corp
CONN HEADER VERT 12POS
Deep-Dive with AI
Search across all available documentation for this part.
AT04-12PD-BM02
ActiveAmphenol Sine Systems Corp
CONN HEADER VERT 12POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT04-12PD-BM02 |
|---|---|
| Applications | Industrial, General Purpose, Automotive |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 13 A |
| Fastening Type | Latch Holder |
| Ingress Protection | IP67 |
| Insulation Color | Brown |
| Insulation Height | 0.835 " |
| Insulation Height | 21.21 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.27 | |
| 10 | $ 8.34 | |||
| 25 | $ 7.86 | |||
| 40 | $ 7.66 | |||
| 200 | $ 7.46 | |||
| 400 | $ 6.65 | |||
| 600 | $ 6.25 | |||
| 1000 | $ 5.52 | |||
Description
General part information
AT04-12PD Series
Connector Header Through Hole 12 position
