AT04-12PD-BM01

Active

Amphenol Sine Systems Corp

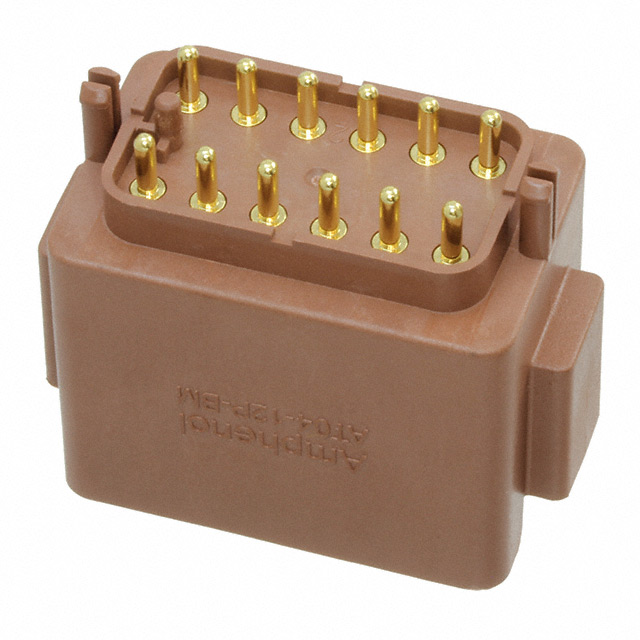

CONN HEADER VERT 12POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBoardLock Family Datasheet

AT04-12PD-BM01

Active

Amphenol Sine Systems Corp

CONN HEADER VERT 12POS

Deep-Dive with AI

DocumentsBoardLock Family Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-12PD-BM01

Applications	Industrial, General Purpose, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Latch Holder
Ingress Protection	IP67
Insulation Color	Brown
Insulation Height	0.835 "
Insulation Height	21.21 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

AT04-12PD Series

Part	Contact Type	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination	Number of Positions	Connector Type	Style	Number of Rows	Insulation Material	Ingress Protection	Insulation Color	Contact Shape	Contact Material	Fastening Type	Insulation Height	Insulation Height	Number of Positions Loaded	Shrouding	Contact Finish - Mating	Note	Features	Contact Termination	Color
Amphenol Sine Systems Corp AT04-12PD-BM03	Male Pin	Automotive General Purpose Industrial	Through Hole	-55 °C	125 °C	13 A	Solder	12	Receptacle	Board to Cable/Wire	2	Thermoplastic	IP67	Brown	Circular	Copper Alloy	Latch Holder	0.835 "	21.21 mm	All	Shrouded - 4 Wall	Nickel
Amphenol Sine Systems Corp AT04-12PD-PM12	Male Pin			-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included	Mounting Flange Sealed	Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD-BM01	Male Pin	Automotive General Purpose Industrial	Through Hole	-55 °C	125 °C	13 A	Solder	12	Receptacle	Board to Cable/Wire	2	Thermoplastic	IP67	Brown	Circular	Copper Alloy	Latch Holder	0.835 "	21.21 mm	All	Shrouded - 4 Wall	Gold
Amphenol Sine Systems Corp AT04-12PD-MM01	Male Pin		Free Hanging (In-Line)	-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included		Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD-L012	Male Pin			-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included	Mounting Flange Sealed	Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD-CL03	Male Pin			-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included	Mounting Flange Sealed	Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD	Male Pin		Free Hanging (In-Line)	-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included		Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD-BM02	Male Pin	Automotive General Purpose Industrial	Through Hole	-55 °C	125 °C	13 A	Solder	12	Receptacle	Board to Cable/Wire	2	Thermoplastic	IP67	Brown	Circular	Copper Alloy	Latch Holder	0.835 "	21.21 mm	All	Shrouded - 4 Wall	Gold
Amphenol Sine Systems Corp AT04-12PD-SRBR	Male Pin		Free Hanging (In-Line)	-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included	Cap (Cover) Sealed Strain Relief	Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD-LE07	Male Pin			-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included	Cap (Cover) Mounting Flange Sealed	Crimp	Brown

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.34
		10	$ 7.51
		25	$ 7.07
		40	$ 6.89
		200	$ 6.71
		400	$ 5.98
		600	$ 5.62
		1000	$ 4.97

Description

General part information

AT04-12PD Series

Connector Header Through Hole 12 position

Documents

Technical documentation and resources

BoardLock Family

Datasheet
