AT04-12PD-CL03
ActiveAmphenol Sine Systems Corp

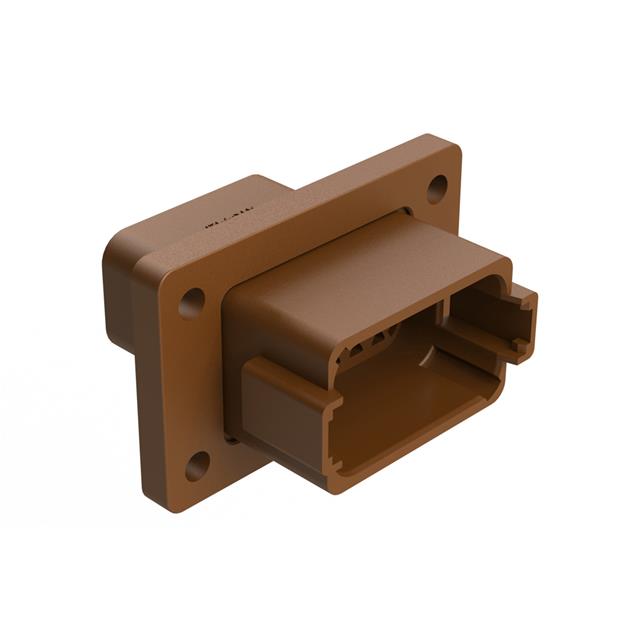

CONN RCPT HSG 12POS FLANGE MNT
Deep-Dive with AI
Search across all available documentation for this part.
AT04-12PD-CL03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG 12POS FLANGE MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT04-12PD-CL03 |
|---|---|
| Color | Brown |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Sealed, Mounting Flange |
| Insulation Material | Thermoplastic |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
AT04-12PD Series
| Part | Contact Type | Applications | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Termination | Number of Positions | Connector Type | Style | Number of Rows | Insulation Material | Ingress Protection | Insulation Color | Contact Shape | Contact Material | Fastening Type | Insulation Height | Insulation Height | Number of Positions Loaded | Shrouding | Contact Finish - Mating | Note | Features | Contact Termination | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Male Pin | Automotive General Purpose Industrial | Through Hole | -55 °C | 125 °C | 13 A | Solder | 12 | Receptacle | Board to Cable/Wire | 2 | Thermoplastic | IP67 | Brown | Circular | Copper Alloy | Latch Holder | 0.835 " | 21.21 mm | All | Shrouded - 4 Wall | Nickel | ||||
Amphenol Sine Systems Corp | Male Pin | -55 °C | 125 °C | 12 | Receptacle | 2 | Thermoplastic | Latch Holder | Contacts Not Included | Mounting Flange Sealed | Crimp | Brown | ||||||||||||||
Amphenol Sine Systems Corp | Male Pin | Automotive General Purpose Industrial | Through Hole | -55 °C | 125 °C | 13 A | Solder | 12 | Receptacle | Board to Cable/Wire | 2 | Thermoplastic | IP67 | Brown | Circular | Copper Alloy | Latch Holder | 0.835 " | 21.21 mm | All | Shrouded - 4 Wall | Gold | ||||
Amphenol Sine Systems Corp | Male Pin | Free Hanging (In-Line) | -55 °C | 125 °C | 12 | Receptacle | 2 | Thermoplastic | Latch Holder | Contacts Not Included | Crimp | Brown | ||||||||||||||
Amphenol Sine Systems Corp | Male Pin | -55 °C | 125 °C | 12 | Receptacle | 2 | Thermoplastic | Latch Holder | Contacts Not Included | Mounting Flange Sealed | Crimp | Brown | ||||||||||||||
Amphenol Sine Systems Corp | Male Pin | -55 °C | 125 °C | 12 | Receptacle | 2 | Thermoplastic | Latch Holder | Contacts Not Included | Mounting Flange Sealed | Crimp | Brown | ||||||||||||||
Amphenol Sine Systems Corp | Male Pin | Free Hanging (In-Line) | -55 °C | 125 °C | 12 | Receptacle | 2 | Thermoplastic | Latch Holder | Contacts Not Included | Crimp | Brown | ||||||||||||||
Amphenol Sine Systems Corp | Male Pin | Automotive General Purpose Industrial | Through Hole | -55 °C | 125 °C | 13 A | Solder | 12 | Receptacle | Board to Cable/Wire | 2 | Thermoplastic | IP67 | Brown | Circular | Copper Alloy | Latch Holder | 0.835 " | 21.21 mm | All | Shrouded - 4 Wall | Gold | ||||
Amphenol Sine Systems Corp | Male Pin | Free Hanging (In-Line) | -55 °C | 125 °C | 12 | Receptacle | 2 | Thermoplastic | Latch Holder | Contacts Not Included | Cap (Cover) Sealed Strain Relief | Crimp | Brown | |||||||||||||
Amphenol Sine Systems Corp | Male Pin | -55 °C | 125 °C | 12 | Receptacle | 2 | Thermoplastic | Latch Holder | Contacts Not Included | Cap (Cover) Mounting Flange Sealed | Crimp | Brown |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.36 | |
| 10 | $ 3.94 | |||
| 25 | $ 3.73 | |||
| 50 | $ 3.64 | |||
| 100 | $ 3.45 | |||
| 300 | $ 3.20 | |||
Description
General part information
AT04-12PD Series
12 Rectangular Connectors - Housings Receptacle Brown
Documents
Technical documentation and resources
