870-831

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

870-831

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	870-831

Color	Gray
Current - IEC	24 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Number of Positions	4
Stripping Length [Max]	7 mm
Stripping Length [Min]	6 mm
Terminal - Width	5 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	500 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²

870 Series

Part	For Use With/Related Products	Type	Color	Number of Levels	Number of Positions	Termination Style	Voltage - IEC	Current - IEC	Material - Insulation	Terminal - Width	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Style	Number of Levels [custom]
WAGO Corporation 870-943	Terminal Blocks	End Plate	Gray
WAGO Corporation 870-901		Feed Through	Gray	1	2	Push In Spring	500 V	24 A	Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²
WAGO Corporation 870-402	Terminal Blocks	Terminal Block Cross Connection	Gray		2												Flat Pins
WAGO Corporation 870-837		Ground Earth	Green Yellow	1	4	Push In Spring			Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²
WAGO Corporation 870-403	Terminal Blocks	Terminal Block Cross Connection	Gray														Flat Pins
WAGO Corporation 870-551		Feed Through	Gray		6	Push In Spring	500 V	24 A		5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²		3
WAGO Corporation 870-831		Feed Through	Gray	1	4	Push In Spring	500 V	24 A	Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²
WAGO Corporation 870-568	Terminal Blocks	End Plate	Gray
WAGO Corporation 870-518	Terminal Blocks	End Plate	Gray
WAGO Corporation 870-501		Feed Through	Gray	2	4	Push In Spring	500 V	24 A	Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.02
		10	$ 3.07
		25	$ 2.87
		50	$ 2.55
		100	$ 2.50
		250	$ 2.30
		500	$ 2.08
		1000	$ 1.85
		5000	$ 1.73
Newark	Each	1	$ 3.83
		25	$ 3.60
		100	$ 3.39
		250	$ 3.19
		500	$ 2.95

Description

General part information

870 Series

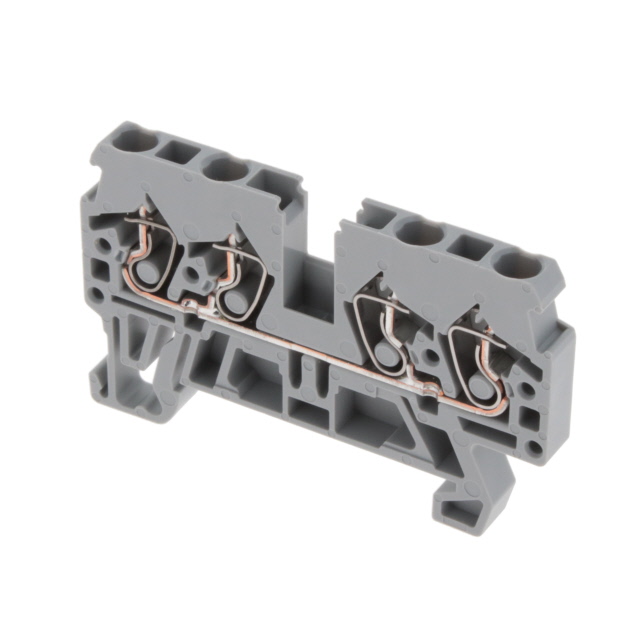

The 870-831 is a 4-position gray DIN rail-mount through Terminal Block with CAGE CLAMP® COMPACT connection technology. It is made with the polyamide 66 (PA 66) insulator. It features horizontal design and side marking.
