870-501

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

870-501

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	870-501

Color	Gray
Current - IEC	24 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	2
Number of Positions	4
Stripping Length [Max]	7 mm
Stripping Length [Min]	6 mm
Terminal - Width	5 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	500 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²

870 Series

Part	For Use With/Related Products	Type	Color	Number of Levels	Number of Positions	Termination Style	Voltage - IEC	Current - IEC	Material - Insulation	Terminal - Width	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Style	Number of Levels [custom]
WAGO Corporation 870-943	Terminal Blocks	End Plate	Gray
WAGO Corporation 870-901		Feed Through	Gray	1	2	Push In Spring	500 V	24 A	Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²
WAGO Corporation 870-402	Terminal Blocks	Terminal Block Cross Connection	Gray		2												Flat Pins
WAGO Corporation 870-837		Ground Earth	Green Yellow	1	4	Push In Spring			Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²
WAGO Corporation 870-403	Terminal Blocks	Terminal Block Cross Connection	Gray														Flat Pins
WAGO Corporation 870-551		Feed Through	Gray		6	Push In Spring	500 V	24 A		5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²		3
WAGO Corporation 870-831		Feed Through	Gray	1	4	Push In Spring	500 V	24 A	Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²
WAGO Corporation 870-568	Terminal Blocks	End Plate	Gray
WAGO Corporation 870-518	Terminal Blocks	End Plate	Gray
WAGO Corporation 870-501		Feed Through	Gray	2	4	Push In Spring	500 V	24 A	Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.28
		10	$ 3.74
		25	$ 3.43
		50	$ 3.27
		100	$ 3.14
		250	$ 3.02
		500	$ 2.96
		1000	$ 2.91
Newark	Each	1	$ 5.87
		25	$ 5.59
		100	$ 5.24
		250	$ 4.96
		500	$ 4.57

Description

General part information

870 Series

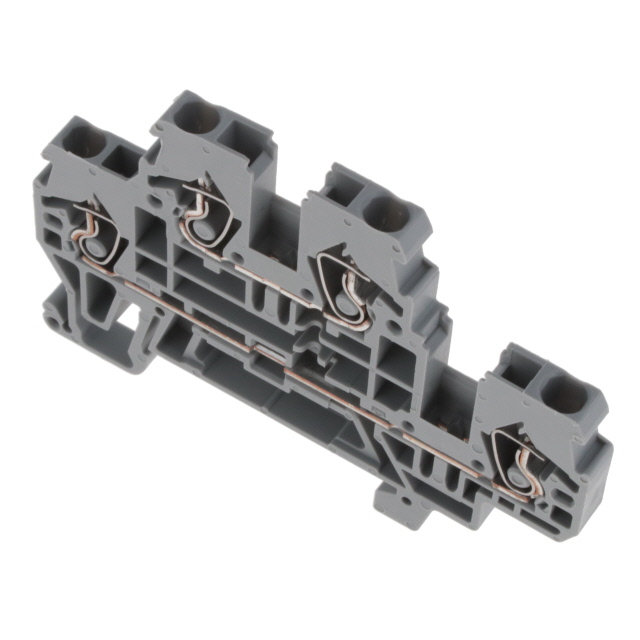

The 870-501 is a 4-position 2-level double-deck DIN rail Terminal Block with PA 6.6 (polyamide 6.6) insulator and grey colour. Front-entry type wiring, side marking level, 2.5mm² cross-section, clamp wire connection method and 28 to 12AWG wire size.
