870-943

Active

WAGO Corporation

CONNECTOR ACCESSORIES END PLATE STRAIGHT POLYAMIDE 6/6 GRAY BOX

Search across all available documentation for this part.

Active

WAGO Corporation

CONNECTOR ACCESSORIES END PLATE STRAIGHT POLYAMIDE 6/6 GRAY BOX

Technical Specifications

Parameters and characteristics for this part

Specification	870-943

Color	Gray
For Use With/Related Products	Terminal Blocks
Type	End Plate

Part	For Use With/Related Products	Type	Color	Number of Levels	Number of Positions	Termination Style	Voltage - IEC	Current - IEC	Material - Insulation	Terminal - Width	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Style	Number of Levels [custom]
WAGO Corporation 870-943	Terminal Blocks	End Plate	Gray
WAGO Corporation 870-901		Feed Through	Gray	1	2	Push In Spring	500 V	24 A	Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²
WAGO Corporation 870-402	Terminal Blocks	Terminal Block Cross Connection	Gray		2												Flat Pins
WAGO Corporation 870-837		Ground Earth	Green Yellow	1	4	Push In Spring			Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²
WAGO Corporation 870-403	Terminal Blocks	Terminal Block Cross Connection	Gray														Flat Pins
WAGO Corporation 870-551		Feed Through	Gray		6	Push In Spring	500 V	24 A		5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²		3
WAGO Corporation 870-831		Feed Through	Gray	1	4	Push In Spring	500 V	24 A	Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²
WAGO Corporation 870-568	Terminal Blocks	End Plate	Gray
WAGO Corporation 870-518	Terminal Blocks	End Plate	Gray
WAGO Corporation 870-501		Feed Through	Gray	2	4	Push In Spring	500 V	24 A	Polyamide (PA66) Nylon 6/6	5 mm	6 mm	7 mm	28 AWG	12 AWG	0.08 mm²	2.5 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

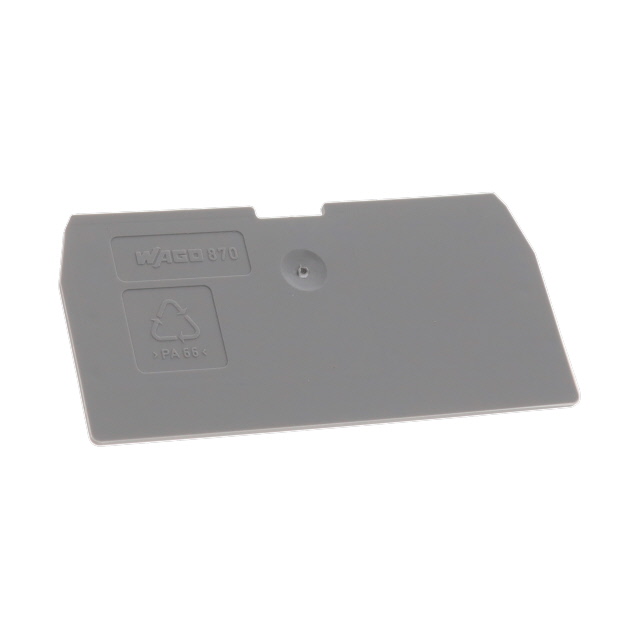

The 870-943 is a grey End and Intermediate Plate for use with terminal blocks.
