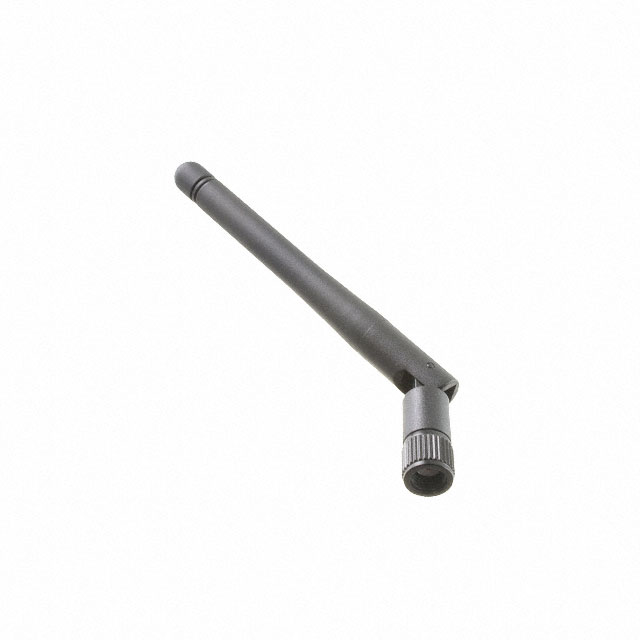

ANT-DK-DB1DI-2AB(C)-
ActiveAdam Tech
2.4 TO 2.5GHZ WIFI EXTERNAL ANTENNA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-DK-DB1DI-2AB(C)-
ActiveAdam Tech
2.4 TO 2.5GHZ WIFI EXTERNAL ANTENNA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-DK-DB1DI-2AB(C)- |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | WLAN |
| Frequency (Center/Band) | 2.45 GHz, 5.35 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.5 GHz, 5.8 GHz |
| Frequency Range [Min] | 4.9 GHz, 2.4 GHz |
| Gain | 2 dBic |
| Height (Max) [Max] | 4.252 in |
| Height (Max) [Max] | 108 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 1 W |
| Return Loss | -10 dB |
| RF Family/Standard | WiFi |
| Termination | RP-SMA |
| VSWR | 1.92 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 4.34 | |
| 10 | $ 3.32 | |||
| 25 | $ 2.99 | |||
| 50 | $ 2.77 | |||
| 100 | $ 2.57 | |||
| 250 | $ 2.33 | |||
| 500 | $ 2.17 | |||
| 1000 | $ 2.02 | |||
| 2500 | $ 1.85 | |||
Description
General part information
ANT-DK Series
RF ANTENNA WLAN Whip, Tilt RP-SMA Connector Mount
