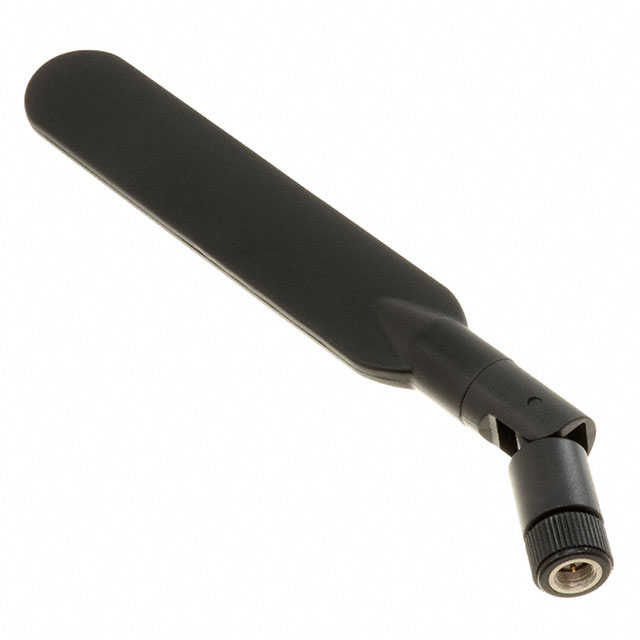

ANT-DK-LTE1DIP-2AP(P)
ActiveAdam Tech
ANTENNA LTE 2DBI GAIN 960MHZ/2690MHZ BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-DK-LTE1DIP-2AP(P) |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | LTE |
| Frequency (Center/Band) | 2.2 GHz, 832 MHz |
| Frequency Group [Max] | 1 GHz, 3 GHz |
| Frequency Group [Min] | 300 MHz, 2 GHz |
| Frequency Range [Max] | 2.69 GHz, 960 MHz |
| Frequency Range [Min] | 704 MHz, 1.71 GHz |
| Gain | 2 dBic |
| Height (Max) [Max] | 6.339 in |
| Height (Max) [Max] | 161 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 1 W |
| Return Loss | -10 dB |
| RF Family/Standard | Cellular |
| Termination | SMA |
| VSWR | 1.92 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.21 | |
| 10 | $ 7.07 | |||
| 25 | $ 6.38 | |||
| 50 | $ 5.92 | |||
| 100 | $ 5.49 | |||
| 250 | $ 5.00 | |||
| 500 | $ 4.66 | |||
| 1000 | $ 4.36 | |||
Description
General part information
ANT-DK Series
RF ANTENNA LTE Whip, Tilt SMA Connector Mount
