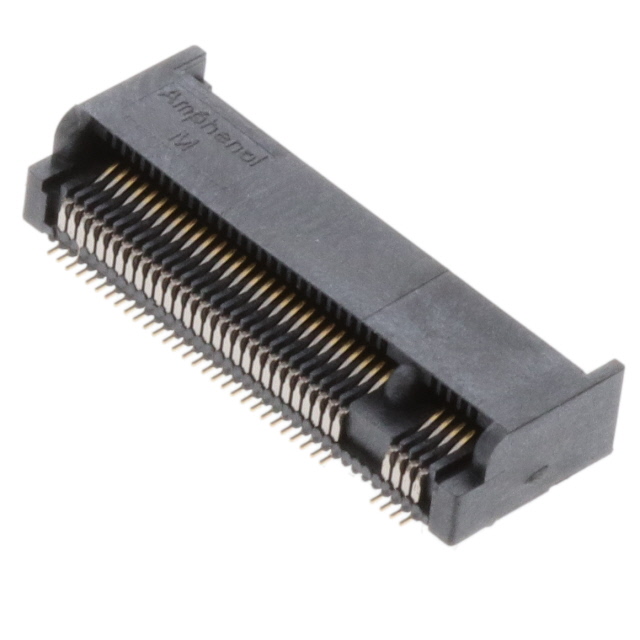

MDT420M01002
ActiveAmphenol ICC (FCI)
CONN M.2 FMALE 67POS 0.020 GOLD
Deep-Dive with AI
Search across all available documentation for this part.
MDT420M01002
ActiveAmphenol ICC (FCI)
CONN M.2 FMALE 67POS 0.020 GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT420M01002 |
|---|---|
| Card Thickness | 0.031 in |
| Card Thickness | 0.79 mm |
| Card Type | M.2 (NGFF) Mini Card |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Features | Solder Retention, Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 67 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.75 | |
| 10 | $ 2.10 | |||
| 25 | $ 1.89 | |||
| 50 | $ 1.75 | |||
| 100 | $ 1.62 | |||
| 250 | $ 1.47 | |||
| Digi-Reel® | 1 | $ 2.75 | ||
| 10 | $ 2.10 | |||
| 25 | $ 1.89 | |||
| 50 | $ 1.75 | |||
| 100 | $ 1.62 | |||
| 250 | $ 1.47 | |||
| Tape & Reel (TR) | 800 | $ 1.10 | ||
Description
General part information
MDT420 Series
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
