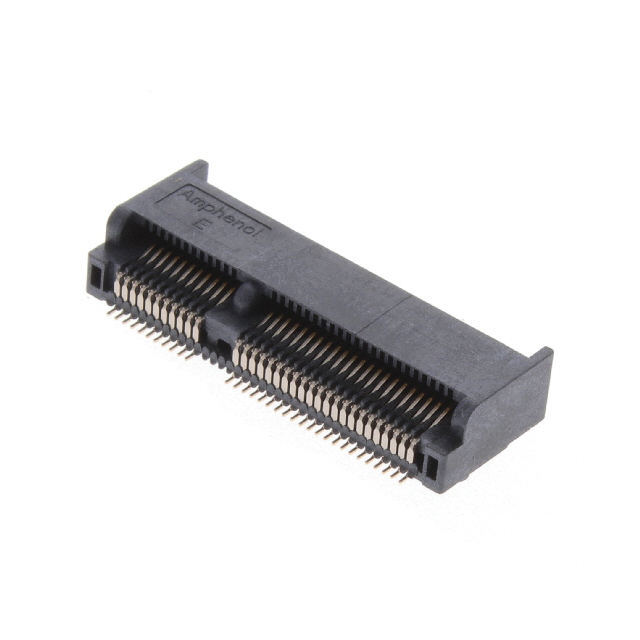

MDT420E03001
ActiveAmphenol ICC (FCI)
CONN M.2 FMALE 67POS 0.020 GOLD
Deep-Dive with AI
Search across all available documentation for this part.
MDT420E03001
ActiveAmphenol ICC (FCI)
CONN M.2 FMALE 67POS 0.020 GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT420E03001 |
|---|---|
| Card Type | M.2 (NGFF) Mini Card |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Features | Board Lock, Keyed E |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 67 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.48 | |
| 10 | $ 1.72 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.47 | |||
| 100 | $ 1.32 | |||
| 250 | $ 1.30 | |||
| Digi-Reel® | 1 | $ 2.48 | ||
| 10 | $ 1.72 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.47 | |||
| 100 | $ 1.32 | |||
| 250 | $ 1.30 | |||
| Tape & Reel (TR) | 800 | $ 1.10 | ||
| 1600 | $ 1.08 | |||
| 2400 | $ 1.05 | |||
| 4000 | $ 1.00 | |||
| 5600 | $ 0.97 | |||
| 8000 | $ 0.94 | |||
Description
General part information
MDT420 Series
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
