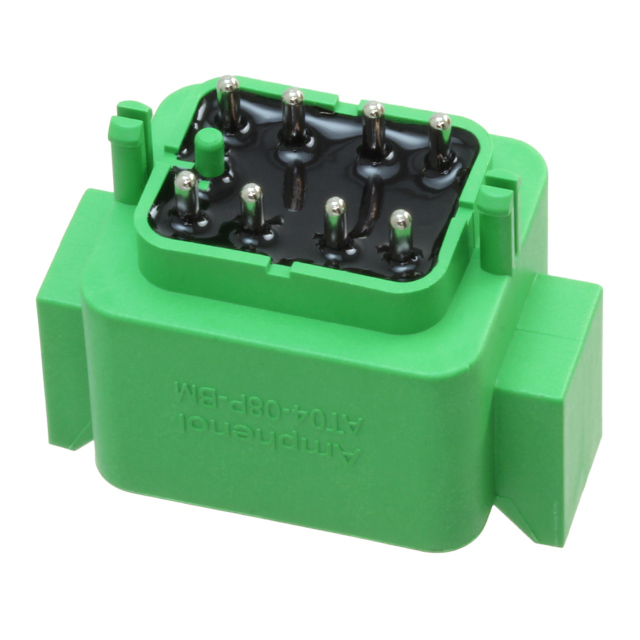

AT04-08PC-BM04
ActiveAmphenol Sine Systems Corp
CONN HEADER VERT 8POS
Deep-Dive with AI
Search across all available documentation for this part.
AT04-08PC-BM04
ActiveAmphenol Sine Systems Corp
CONN HEADER VERT 8POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT04-08PC-BM04 |
|---|---|
| Applications | Industrial, General Purpose, Automotive |
| Connector Type | Receptacle |
| Contact Finish - Mating | Nickel |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 13 A |
| Fastening Type | Latch Holder |
| Ingress Protection | IP67 |
| Insulation Color | Green |
| Insulation Height | 0.835 " |
| Insulation Height | 21.21 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.01 | |
| 10 | $ 6.14 | |||
| 25 | $ 5.54 | |||
| 40 | $ 5.26 | |||
| 80 | $ 4.88 | |||
| 230 | $ 4.37 | |||
| 440 | $ 4.09 | |||
| 945 | $ 3.80 | |||
| 2400 | $ 3.49 | |||
Description
General part information
AT04-08PC Series
Connector Header Through Hole 8 position
