Technical Specifications
Parameters and characteristics for this part

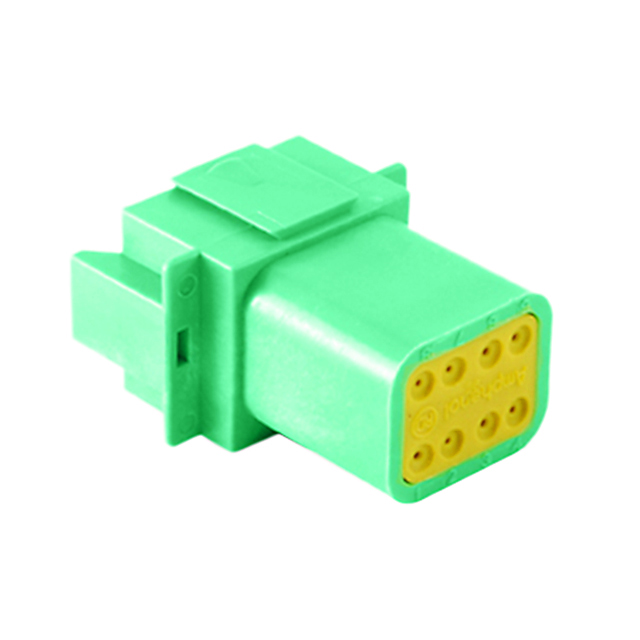

| Specification | AT04-08PC-RD01 |
|---|---|
| Color | Green |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Sealed |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.71 | |
| 10 | $ 3.37 | |||
| 25 | $ 3.19 | |||
| 50 | $ 3.12 | |||
| 100 | $ 2.97 | |||
| 270 | $ 2.60 | |||
| 540 | $ 2.52 | |||
| 1080 | $ 2.15 | |||
| 2700 | $ 2.00 | |||
Description
General part information
AT04-08PC Series
8 Rectangular Connectors - Housings Receptacle Green
