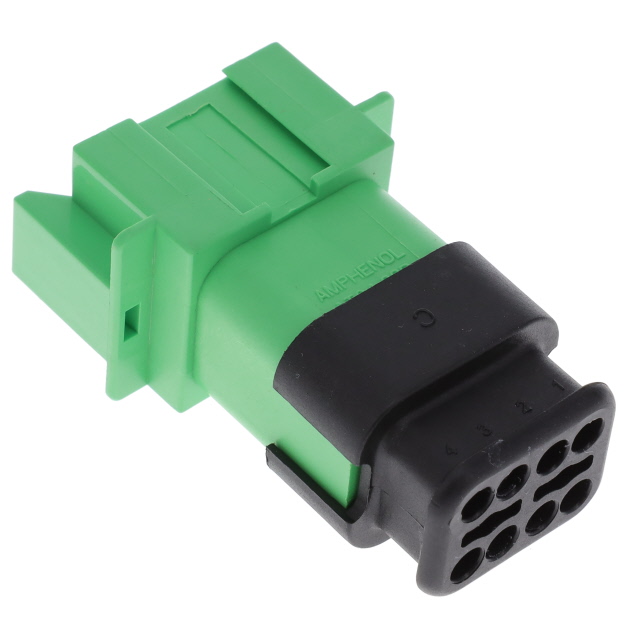

AT04-08PC-SR2GN

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS 14-20AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAT Series SR01/02 Datasheet

AT04-08PC-SR2GN

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 8POS 14-20AWG

Deep-Dive with AI

DocumentsAT Series SR01/02 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-08PC-SR2GN

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed, Strain Relief, Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-08PC Series

Part	Insulation Material	Note	Contact Type	Fastening Type	Number of Positions	Color	Number of Rows	Features	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Termination	Current Rating (Amps)	Ingress Protection	Contact Finish - Mating	Number of Positions Loaded	Style	Insulation Color	Insulation Height	Insulation Height	Shrouding	Contact Shape	Applications	Contact Material
Amphenol Sine Systems Corp AT04-08PC-SRGN	Thermoplastic	Contacts Not Included	Male Pin	Latch Holder	8	Green	2	Cap (Cover) Sealed Strain Relief	Receptacle	Free Hanging (In-Line)	-55 °C	125 °C	Crimp
Amphenol Sine Systems Corp AT04-08PC-RD01	Thermoplastic	Contacts Not Included	Male Pin	Latch Holder	8	Green	2	Sealed	Receptacle	Free Hanging (In-Line)	-55 °C	125 °C	Crimp
Amphenol Sine Systems Corp AT04-08PC-BM01	Thermoplastic		Male Pin	Latch Holder	8		2		Receptacle	Through Hole	-55 °C	125 °C		Solder	13 A	IP67	Gold	All	Board to Cable/Wire	Green	0.835 "	21.21 mm	Shrouded - 4 Wall	Circular	Automotive General Purpose Industrial	Copper Alloy
Amphenol Sine Systems Corp AT04-08PC-PM13	Thermoplastic	Contacts Not Included	Male Pin	Latch Holder	8	Green	2	Cap (Cover) Mounting Flange Sealed	Receptacle		-55 °C	125 °C	Crimp
Amphenol Sine Systems Corp AT04-08PC-BM02	Thermoplastic		Male Pin	Latch Holder	8		2		Receptacle	Through Hole	-55 °C	125 °C		Solder	13 A	IP67	Gold	All	Board to Cable/Wire	Green	0.835 "	21.21 mm	Shrouded - 4 Wall	Circular	Automotive General Purpose Industrial	Copper Alloy
Amphenol Sine Systems Corp AT04-08PC-BM04	Thermoplastic		Male Pin	Latch Holder	8		2		Receptacle	Through Hole	-55 °C	125 °C		Solder	13 A	IP67	Nickel	All	Board to Cable/Wire	Green	0.835 "	21.21 mm	Shrouded - 4 Wall	Circular	Automotive General Purpose Industrial	Copper Alloy
Amphenol Sine Systems Corp AT04-08PC-SR2GN	Thermoplastic	Contacts Not Included	Male Pin	Latch Holder	8	Green	2	Cap (Cover) Sealed Strain Relief	Receptacle	Free Hanging (In-Line)	-55 °C	125 °C	Crimp
Amphenol Sine Systems Corp AT04-08PC-PM14	Thermoplastic	Contacts Not Included	Male Pin	Latch Holder	8	Green	2	Cap (Cover) Mounting Flange Sealed	Receptacle		-55 °C	125 °C	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.73
		10	$ 2.48
		25	$ 2.35
		50	$ 2.30
		150	$ 2.19
		300	$ 1.93

Description

General part information

AT04-08PC Series

8 Rectangular Connectors - Housings Receptacle Green

Documents

Technical documentation and resources

AT Series SR01/02

Datasheet
