8412NGMLE

Active

ebm-papst Inc.

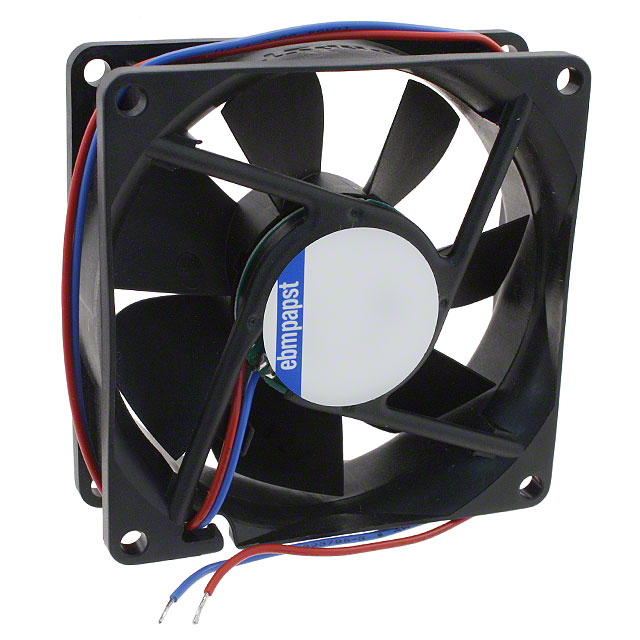

DC FAN AXIAL SINTEC-SLEEVE BEARING 12V 8V TO 15V 26.5CFM 19DB 80 X 80 X 25.4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet

8412NGMLE

Active

ebm-papst Inc.

DC FAN AXIAL SINTEC-SLEEVE BEARING 12V 8V TO 15V 26.5CFM 19DB 80 X 80 X 25.4MM

Deep-Dive with AI

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8412NGMLE

Air Flow	26.5 CFM
Air Flow	0.742 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Sintec
Fan Type	Tubeaxial
Lifetime @ Temp.	80000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	19 dB(A)
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	0.9 W
RPM	2050 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	8 VDC
Width [y]	25.4 mm

8412N Series

Part	Approval Agency	Material - Frame	Termination	Width [y]	Material - Blade	Weight	Weight	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Noise	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Fan Type	Lifetime @ Temp.	RPM	Air Flow	Air Flow	Features	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature	Operating Temperature
ebm-papst Inc. 8412NGMI	CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)	140.61 g	0.31 lb	12 VDC	80 mm	80 mm	13 dB(A)	Sintec	8 VDC	14 V	1.4 W	Tubeaxial
ebm-papst Inc. 8412NLE	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	17 dB	Ball	8 VDC	15 V	300 mW	Tubeaxial	80000 Hrs	1500 RPM	19.4 CFM	0.543 m³/min
ebm-papst Inc. 8412N/2	CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	32 dB	Ball	8 VDC	15 V	2 W	Tubeaxial	70000 Hrs	3100 RPM	40.6 CFM	1.14 m³/min	Speed Sensor (Tach)	-20 °C	70 °C	-20 C	70 °C
ebm-papst Inc. 8412N/2GHP		Plastic	4 Wire Leads	25 mm	Plastic			12 VDC	80 mm	80 mm	35 dB	Sintec	10.8 VDC	13.2 VDC	3 W	Tubeaxial		3600 RPM	37.7 CFM	1.06 mł/min	Auto Restart Locked Rotor Protection PWM Control Speed Sensor (Tach)	0 °C		0 °C	70 °C	0.25 A	40 Pa	0.16 in H2O	70 °C
ebm-papst Inc. 8412N/2GH		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	26 dB	Sintec	8 VDC	13.2 VDC	2.2 W	Tubeaxial			47 CFM	1.32 m³/min	Speed Sensor (Tach)									70 °C	70 °C
ebm-papst Inc. 8412NGME	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	26 dB	Sintec	8 VDC	15 V	1.4 W	Tubeaxial	160000 Hrs	2600 RPM	34.1 CFM	0.955 m³/min		-20 °C	75 °C	-20 C	75 ░C
ebm-papst Inc. 8412NGMLE	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	19 dB(A)	Sintec	8 VDC	15 V	0.9 W	Tubeaxial	80000 Hrs	2050 RPM	26.5 CFM	0.742 m³/min		-20 °C		-20 C	80 C				80 °C
ebm-papst Inc. 8412NGMV	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	26 dB	Sintec	8 VDC	14 V	2 W	Tubeaxial	80000 Hrs	2600 RPM	34.1 CFM	0.955 m³/min		-20 °C	70 °C	-20 C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 6.74
Digikey	Bulk	1	$ 22.13
		10	$ 19.73
		25	$ 18.85
		50	$ 18.21
		100	$ 17.59
		250	$ 16.80
		500	$ 16.23
Newark	Each	25	$ 23.94
		50	$ 22.44
		100	$ 21.22
		250	$ 19.32

Description

General part information

8412N Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Sintec 26.5 CFM (0.742m³/min) 2 Wire Leads
