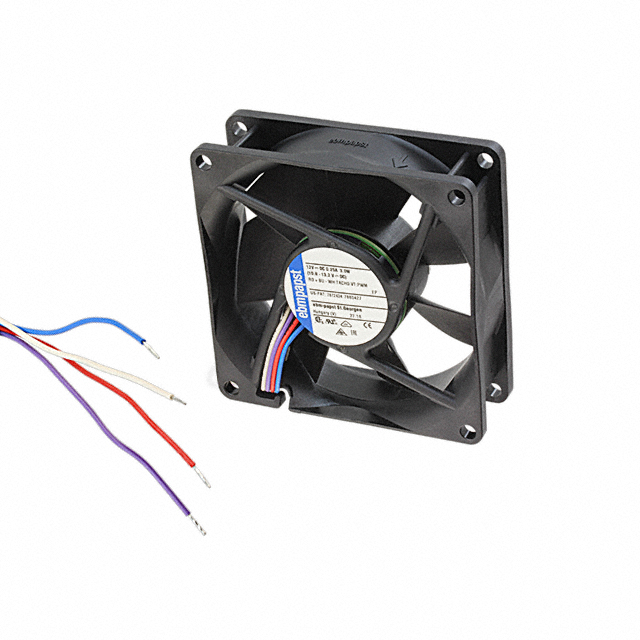

8412N/2GHP

Active

ebm-papst Inc.

FAN AXIAL 80X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8412N/2GHP

Active

ebm-papst Inc.

FAN AXIAL 80X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8412N/2GHP

Air Flow	37.7 CFM
Air Flow	1.06 mł/min
Bearing Type	Sintec
Current Rating (Amps)	0.25 A
Fan Type	Tubeaxial
Features	PWM Control, Speed Sensor (Tach), Auto Restart, Locked Rotor Protection
Material - Blade	Plastic
Material - Frame	Plastic
Noise	35 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Operating Temperature [Min]	0 °C
Power (Watts)	3 W
RPM	3600 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	40 Pa
Static Pressure	0.16 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Width [y]	25 mm

8412N Series

Part	Approval Agency	Material - Frame	Termination	Width [y]	Material - Blade	Weight	Weight	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Noise	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Fan Type	Lifetime @ Temp.	RPM	Air Flow	Air Flow	Features	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature	Operating Temperature
ebm-papst Inc. 8412NGMI	CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)	140.61 g	0.31 lb	12 VDC	80 mm	80 mm	13 dB(A)	Sintec	8 VDC	14 V	1.4 W	Tubeaxial
ebm-papst Inc. 8412NLE	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	17 dB	Ball	8 VDC	15 V	300 mW	Tubeaxial	80000 Hrs	1500 RPM	19.4 CFM	0.543 m³/min
ebm-papst Inc. 8412N/2	CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	32 dB	Ball	8 VDC	15 V	2 W	Tubeaxial	70000 Hrs	3100 RPM	40.6 CFM	1.14 m³/min	Speed Sensor (Tach)	-20 °C	70 °C	-20 C	70 °C
ebm-papst Inc. 8412N/2GHP		Plastic	4 Wire Leads	25 mm	Plastic			12 VDC	80 mm	80 mm	35 dB	Sintec	10.8 VDC	13.2 VDC	3 W	Tubeaxial		3600 RPM	37.7 CFM	1.06 mł/min	Auto Restart Locked Rotor Protection PWM Control Speed Sensor (Tach)	0 °C		0 °C	70 °C	0.25 A	40 Pa	0.16 in H2O	70 °C
ebm-papst Inc. 8412N/2GH		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	26 dB	Sintec	8 VDC	13.2 VDC	2.2 W	Tubeaxial			47 CFM	1.32 m³/min	Speed Sensor (Tach)									70 °C	70 °C
ebm-papst Inc. 8412NGME	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	26 dB	Sintec	8 VDC	15 V	1.4 W	Tubeaxial	160000 Hrs	2600 RPM	34.1 CFM	0.955 m³/min		-20 °C	75 °C	-20 C	75 ░C
ebm-papst Inc. 8412NGMLE	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	19 dB(A)	Sintec	8 VDC	15 V	0.9 W	Tubeaxial	80000 Hrs	2050 RPM	26.5 CFM	0.742 m³/min		-20 °C		-20 C	80 C				80 °C
ebm-papst Inc. 8412NGMV	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	26 dB	Sintec	8 VDC	14 V	2 W	Tubeaxial	80000 Hrs	2600 RPM	34.1 CFM	0.955 m³/min		-20 °C	70 °C	-20 C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.35
		10	$ 43.25
		25	$ 41.60
		50	$ 38.87
		100	$ 35.86
		250	$ 35.31

Description

General part information

8412N Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Sintec 37.7 CFM (1.06m³/min) 4 Wire Leads
