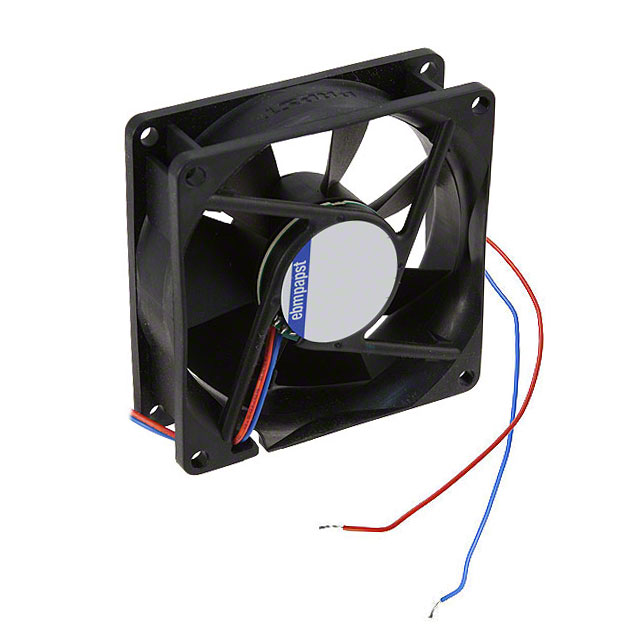

8412NGMV

Active

ebm-papst Inc.

DC FAN AXIAL SINTEC-SLEEVE BEARING 12V 8V TO 14V 34.1CFM 26DB 80 X 80 X 25.4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTubeaxial Fan Accessories - Quick Reference Compact Fans for AC, DC, and EC Catalog +1

8412NGMV

Active

ebm-papst Inc.

DC FAN AXIAL SINTEC-SLEEVE BEARING 12V 8V TO 14V 34.1CFM 26DB 80 X 80 X 25.4MM

Deep-Dive with AI

DocumentsTubeaxial Fan Accessories - Quick Reference Compact Fans for AC, DC, and EC Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8412NGMV

Air Flow	34.1 CFM
Air Flow	0.955 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Sintec
Fan Type	Tubeaxial
Lifetime @ Temp.	80000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	26 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	2 W
RPM	2600 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	14 V
Voltage Range [Min]	8 VDC
Width [y]	25.4 mm

8412N Series

Part	Approval Agency	Material - Frame	Termination	Width [y]	Material - Blade	Weight	Weight	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Noise	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Fan Type	Lifetime @ Temp.	RPM	Air Flow	Air Flow	Features	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature	Operating Temperature
ebm-papst Inc. 8412NGMI	CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)	140.61 g	0.31 lb	12 VDC	80 mm	80 mm	13 dB(A)	Sintec	8 VDC	14 V	1.4 W	Tubeaxial
ebm-papst Inc. 8412NLE	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	17 dB	Ball	8 VDC	15 V	300 mW	Tubeaxial	80000 Hrs	1500 RPM	19.4 CFM	0.543 m³/min
ebm-papst Inc. 8412N/2	CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	32 dB	Ball	8 VDC	15 V	2 W	Tubeaxial	70000 Hrs	3100 RPM	40.6 CFM	1.14 m³/min	Speed Sensor (Tach)	-20 °C	70 °C	-20 C	70 °C
ebm-papst Inc. 8412N/2GHP		Plastic	4 Wire Leads	25 mm	Plastic			12 VDC	80 mm	80 mm	35 dB	Sintec	10.8 VDC	13.2 VDC	3 W	Tubeaxial		3600 RPM	37.7 CFM	1.06 mł/min	Auto Restart Locked Rotor Protection PWM Control Speed Sensor (Tach)	0 °C		0 °C	70 °C	0.25 A	40 Pa	0.16 in H2O	70 °C
ebm-papst Inc. 8412N/2GH		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	26 dB	Sintec	8 VDC	13.2 VDC	2.2 W	Tubeaxial			47 CFM	1.32 m³/min	Speed Sensor (Tach)									70 °C	70 °C
ebm-papst Inc. 8412NGME	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	26 dB	Sintec	8 VDC	15 V	1.4 W	Tubeaxial	160000 Hrs	2600 RPM	34.1 CFM	0.955 m³/min		-20 °C	75 °C	-20 C	75 ░C
ebm-papst Inc. 8412NGMLE	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	19 dB(A)	Sintec	8 VDC	15 V	0.9 W	Tubeaxial	80000 Hrs	2050 RPM	26.5 CFM	0.742 m³/min		-20 °C		-20 C	80 C				80 °C
ebm-papst Inc. 8412NGMV	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			12 VDC	80 mm	80 mm	26 dB	Sintec	8 VDC	14 V	2 W	Tubeaxial	80000 Hrs	2600 RPM	34.1 CFM	0.955 m³/min		-20 °C	70 °C	-20 C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	3	$ 27.13
Digikey	Bulk	1	$ 25.56

Description

General part information

8412N Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Sintec 34.1 CFM (0.955m³/min) 2 Wire Leads
