1934354-1
ActiveTE Connectivity Raychem Cable Protection

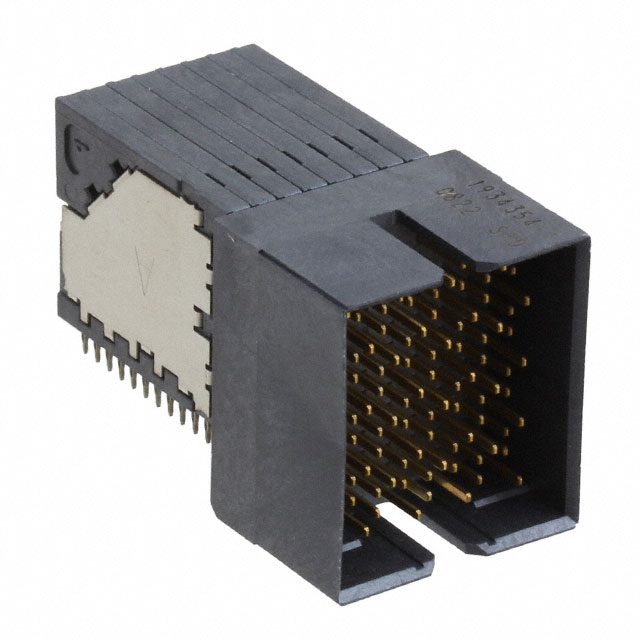

TINMAN R/A HEADER ASSY 4X8 DOUBLE
Deep-Dive with AI
Search across all available documentation for this part.
1934354-1
ActiveTE Connectivity Raychem Cable Protection
TINMAN R/A HEADER ASSY 4X8 DOUBLE
Technical Specifications
Parameters and characteristics for this part
| Specification | 1934354-1 |
|---|---|
| Color | Black |
| Connector Style | High Speed |
| Connector Type | Header, Male Pins |
| Connector Usage | Coplanar |
| Connector Usage | Daughtercard |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 0.5 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Columns | 8 |
| Number of Positions | 96 |
| Number of Positions Loaded | All |
| Number of Rows | 12 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.075 in |
| Pitch [x] | 1.9 mm |
| Termination | Press-Fit |
| Voltage Rating | 250 VDC |
Z-PACK TinMan Series
| Part | Number of Positions Loaded | Pitch [x] | Pitch [x] | Current Rating (Amps) | Connector Type | Connector Usage | Connector Usage | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Contact Finish | Voltage Rating | Material Flammability Rating | Number of Positions | Number of Rows | Color | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Mounting Type | Number of Columns | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | All | 0.075 in | 1.9 mm | 0.5 A | Header Male Pins | Coplanar | Daughtercard | 0.76 Ám | 30 Áin | High Speed | Gold | 250 VDC | UL94 V-0 | 90 | 9 | Black | -65 ░C | 90 °C | Press-Fit | Through Hole Right Angle | 10 | |
TE Connectivity Raychem Cable Protection | All | 0.075 in | 1.9 mm | 0.5 A | Header Male Pins | 0.76 Ám | 30 Áin | High Speed | Gold | 250 VDC | UL94 V-0 | 120 | 15 | Black | -65 ░C | 90 °C | Press-Fit | Through Hole | 8 | |||
TE Connectivity Raychem Cable Protection | All | 0.075 in | 1.9 mm | 0.5 A | Header Male Pins | 0.76 Ám | 30 Áin | High Speed | Gold | 250 VDC | UL94 V-0 | 90 | 9 | Black | -65 ░C | 90 °C | Press-Fit | Through Hole | 10 | |||
TE Connectivity Raychem Cable Protection | All | 0.075 in | 1.9 mm | 0.5 A | Header Male Pins | 0.76 Ám | 30 Áin | High Speed | Gold | 250 VDC | UL94 V-0 | 72 | 9 | Black | -65 ░C | 90 °C | Press-Fit | Through Hole | 8 | |||
TE Connectivity Raychem Cable Protection | All | 0.075 in | 1.9 mm | 0.5 A | Header Male Pins | Coplanar | Daughtercard | 0.76 Ám | 30 Áin | High Speed | Gold | 250 VDC | UL94 V-0 | 96 | 12 | Black | -65 ░C | 90 °C | Press-Fit | Through Hole Right Angle | 8 | |
TE Connectivity Raychem Cable Protection | All | 0.075 in | 1.9 mm | 0.5 A | Header Male Pins | Backplane | 0.76 Ám | 30 Áin | High Speed | Gold | 250 VDC | UL94 V-0 | 72 | 9 | Black | -65 ░C | 90 °C | Press-Fit | Through Hole | 8 | ||
TE Connectivity Raychem Cable Protection | All | 0.075 in | 1.9 mm | 0.5 A | Header Male Pins | 0.51 µm | 20 µin | High Speed | Gold | 250 VAC | UL94 V-0 | 90 | 9 | Black | -65 ░C | 90 °C | Press-Fit | Through Hole Right Angle | 10 | Shielded | ||
TE Connectivity Raychem Cable Protection | All | 0.075 in | 1.9 mm | 0.5 A | Receptacle Female Sockets | Coplanar | Daughtercard | 0.76 Ám | 30 Áin | High Speed | Gold | 250 VDC | UL94 V-0 | 192 | 12 | Black | -65 ░C | 90 °C | Press-Fit | Board Edge Right Angle Through Hole | 16 | |
TE Connectivity Raychem Cable Protection | All | 0.075 in | 1.9 mm | 0.5 A | Header Male Pins | 0.76 Ám | 30 Áin | High Speed | Gold | 250 VDC | UL94 V-0 | 240 | 15 | Black | -65 ░C | 90 °C | Press-Fit | Through Hole | 16 | |||
TE Connectivity Raychem Cable Protection | All | 0.075 in | 1.9 mm | 0.5 A | Header Male Pins | 0.76 Ám | 30 Áin | High Speed | Gold | 250 VDC | UL94 V-0 | 96 | 12 | Black | -65 ░C | 90 °C | Press-Fit | Through Hole | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Z-PACK TinMan Series
96 Position High Speed Backplane Connector, 12 Row, 8 Column, PCB Mount Header, Right Angle, Fully Shrouded, Z-PACK TinMan
