CONNECTOR, Z-PACK TINMAN SERIES, 80 CONTACTS, 1.4 MM, HEADER, THROUGH HOLE, 15 ROWS
Deep-Dive with AI
Search across all available documentation for this part.
1934332-1
ActiveTE Connectivity Raychem Cable Protection
CONNECTOR, Z-PACK TINMAN SERIES, 80 CONTACTS, 1.4 MM, HEADER, THROUGH HOLE, 15 ROWS
Technical Specifications
Parameters and characteristics for this part
| Specification | 1934332-1 |
|---|---|
| Color | Black |
| Connector Style | High Speed |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 0.5 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Columns | 16 |
| Number of Positions | 240 |
| Number of Positions Loaded | All |
| Number of Rows | 15 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.075 in |
| Pitch [x] | 1.9 mm |
| Termination | Press-Fit |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Z-PACK TinMan Series

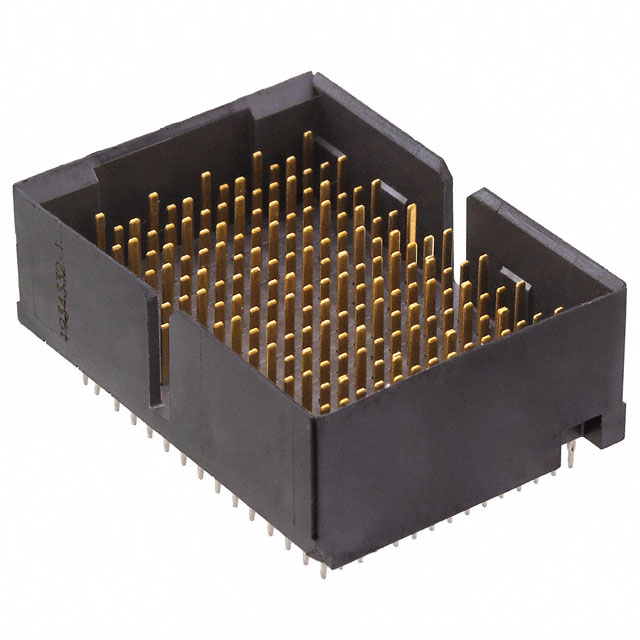

240 Position High Speed Backplane Connector, 15 Row, 16 Column, PCB Mount Header, Vertical, Fully Shrouded, 1.9 mm [.075 in] Centerline, Z-PACK TinMan
