1934303-1

Active

TE Connectivity Raychem Cable Protection

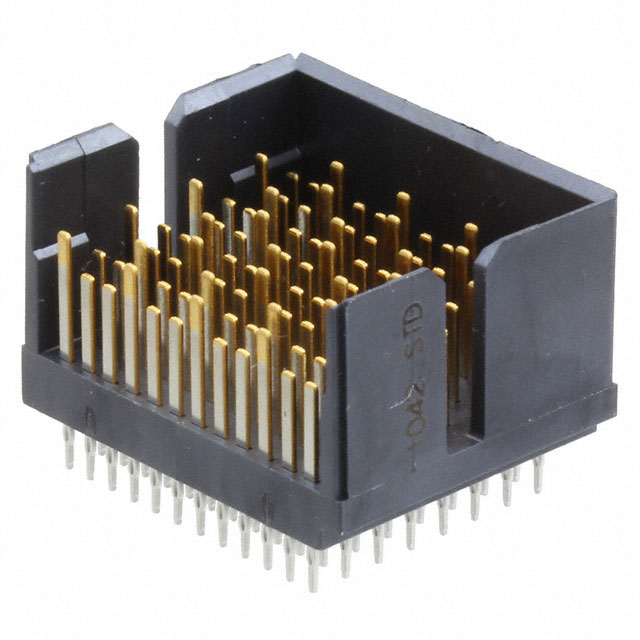

CONN BACKPLANE HDR 96 POS 1.9MM PRESS FIT ST THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +3

1934303-1

Active

TE Connectivity Raychem Cable Protection

CONN BACKPLANE HDR 96 POS 1.9MM PRESS FIT ST THRU-HOLE TUBE

Deep-Dive with AI

DocumentsDatasheet Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1934303-1

Color	Black
Connector Style	High Speed
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	0.5 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	8
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.075 in
Pitch [x]	1.9 mm
Termination	Press-Fit
Voltage Rating	250 VDC

Z-PACK TinMan Series

Part	Number of Positions Loaded	Pitch [x]	Pitch [x]	Current Rating (Amps)	Connector Type	Connector Usage	Connector Usage	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Contact Finish	Voltage Rating	Material Flammability Rating	Number of Positions	Number of Rows	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Number of Columns	Features
TE Connectivity Raychem Cable Protection 1934357-1	All	0.075 in	1.9 mm	0.5 A	Header Male Pins	Coplanar	Daughtercard	0.76 Ám	30 Áin	High Speed	Gold	250 VDC	UL94 V-0	90	9	Black	-65 ░C	90 °C	Press-Fit	Through Hole Right Angle	10
TE Connectivity Raychem Cable Protection 1934272-1	All	0.075 in	1.9 mm	0.5 A	Header Male Pins			0.76 Ám	30 Áin	High Speed	Gold	250 VDC	UL94 V-0	120	15	Black	-65 ░C	90 °C	Press-Fit	Through Hole	8
TE Connectivity Raychem Cable Protection 1934342-1	All	0.075 in	1.9 mm	0.5 A	Header Male Pins			0.76 Ám	30 Áin	High Speed	Gold	250 VDC	UL94 V-0	90	9	Black	-65 ░C	90 °C	Press-Fit	Through Hole	10
TE Connectivity Raychem Cable Protection 1934301-1	All	0.075 in	1.9 mm	0.5 A	Header Male Pins			0.76 Ám	30 Áin	High Speed	Gold	250 VDC	UL94 V-0	72	9	Black	-65 ░C	90 °C	Press-Fit	Through Hole	8
TE Connectivity Raychem Cable Protection 1934354-1	All	0.075 in	1.9 mm	0.5 A	Header Male Pins	Coplanar	Daughtercard	0.76 Ám	30 Áin	High Speed	Gold	250 VDC	UL94 V-0	96	12	Black	-65 ░C	90 °C	Press-Fit	Through Hole Right Angle	8
TE Connectivity Raychem Cable Protection 1934299-1	All	0.075 in	1.9 mm	0.5 A	Header Male Pins	Backplane		0.76 Ám	30 Áin	High Speed	Gold	250 VDC	UL94 V-0	72	9	Black	-65 ░C	90 °C	Press-Fit	Through Hole	8
TE Connectivity Raychem Cable Protection 1934358-1	All	0.075 in	1.9 mm	0.5 A	Header Male Pins			0.51 µm	20 µin	High Speed	Gold	250 VAC	UL94 V-0	90	9	Black	-65 ░C	90 °C	Press-Fit	Through Hole Right Angle	10	Shielded
TE Connectivity Raychem Cable Protection 1934225-1	All	0.075 in	1.9 mm	0.5 A	Receptacle Female Sockets	Coplanar	Daughtercard	0.76 Ám	30 Áin	High Speed	Gold	250 VDC	UL94 V-0	192	12	Black	-65 ░C	90 °C	Press-Fit	Board Edge Right Angle Through Hole	16
TE Connectivity Raychem Cable Protection 1934332-1	All	0.075 in	1.9 mm	0.5 A	Header Male Pins			0.76 Ám	30 Áin	High Speed	Gold	250 VDC	UL94 V-0	240	15	Black	-65 ░C	90 °C	Press-Fit	Through Hole	16
TE Connectivity Raychem Cable Protection 1934303-1	All	0.075 in	1.9 mm	0.5 A	Header Male Pins			0.76 Ám	30 Áin	High Speed	Gold	250 VDC	UL94 V-0	96	12	Black	-65 ░C	90 °C	Press-Fit	Through Hole	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	31	$ 8.94
		62	$ 8.94
		93	$ 8.78
		124	$ 8.64
Digikey	Tube	744	$ 9.23

Description

General part information

Z-PACK TinMan Series

96 Position High Speed Backplane Connector, 12 Row, 8 Column, PCB Mount Header, Vertical, Partially Shrouded, Z-PACK TinMan
