09360242602

Active

HARTING Technology Group

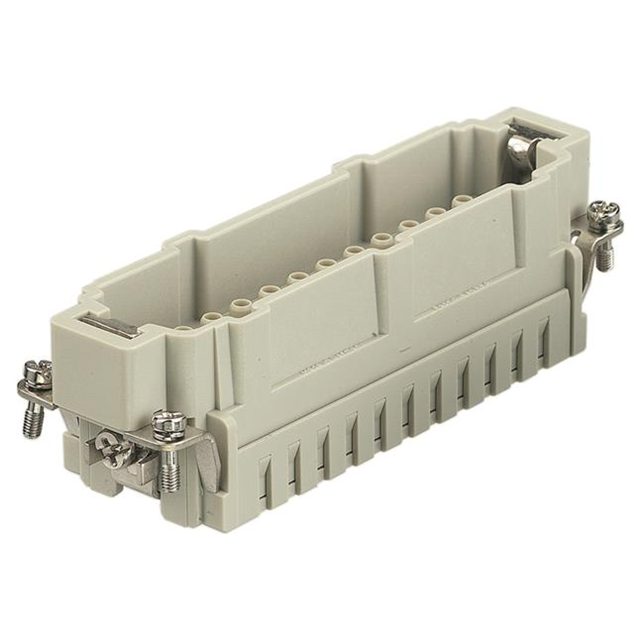

HAN 24E EX MALE CRIMP INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 24E EX MALE CRIMP INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Technical Specifications

Parameters and characteristics for this part

Specification	09360242602

Color	Gray
Connector Type	Insert without Contacts
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	24 B
Termination Style	Crimp
Voltage Rating	90 V

Part	Housing Material	Voltage Rating	Gender	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Size	Material Flammability Rating	Contact Finish	Contact Material	Color	Connector Type
HARTING Technology Group 09360242701	Polycarbonate (PC)	90 V	Female	16 A	-20 C	40 °C	Screw	24 B	UL94 V-0	Silver	Copper Alloy	Gray
HARTING Technology Group 09360242702	Polycarbonate (PC)	90 V	Female	16 A	-20 C	40 °C	Crimp	24 B	UL94 V-0			Gray	Insert without Contacts
HARTING Technology Group 09360242601	Polycarbonate (PC)	90 V	Male	16 A	-20 C	40 °C	Screw	24 B	UL94 V-0	Silver	Copper Alloy	Gray
HARTING Technology Group 09360242602	Polycarbonate (PC)	90 V	Male	16 A	-20 C	40 °C	Crimp	24 B	UL94 V-0			Gray	Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 24+Ground Position Crimp

Technical documentation and resources

No documents available
