09360242702
ActiveHARTING Technology Group

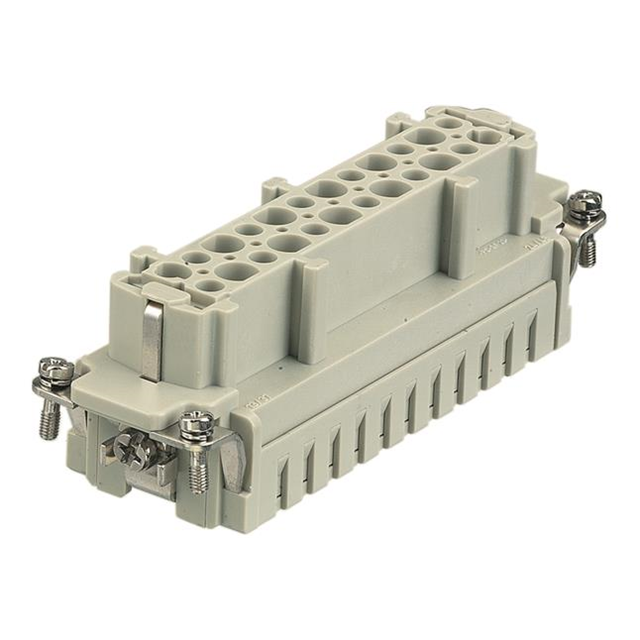

HAN 24E EX FEMALE CRIMP INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09360242702
ActiveHARTING Technology Group
HAN 24E EX FEMALE CRIMP INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09360242702 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Current Rating (Amps) | 16 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Size | 24 B |
| Termination Style | Crimp |
| Voltage Rating | 90 V |
09360242 Series
| Part | Housing Material | Voltage Rating | Gender | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Size | Material Flammability Rating | Contact Finish | Contact Material | Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | Polycarbonate (PC) | 90 V | Female | 16 A | -20 C | 40 °C | Screw | 24 B | UL94 V-0 | Silver | Copper Alloy | Gray | |
HARTING Technology Group | Polycarbonate (PC) | 90 V | Female | 16 A | -20 C | 40 °C | Crimp | 24 B | UL94 V-0 | Gray | Insert without Contacts | ||
HARTING Technology Group | Polycarbonate (PC) | 90 V | Male | 16 A | -20 C | 40 °C | Screw | 24 B | UL94 V-0 | Silver | Copper Alloy | Gray | |
HARTING Technology Group | Polycarbonate (PC) | 90 V | Male | 16 A | -20 C | 40 °C | Crimp | 24 B | UL94 V-0 | Gray | Insert without Contacts |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09360242 Series
Female Insert without Contacts Gray 24+Ground Position Crimp
