09360242601

Active

HARTING Technology Group

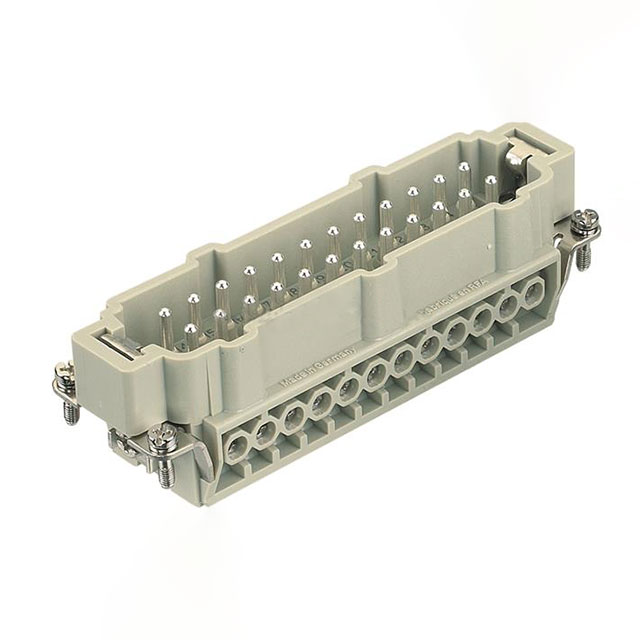

HAN 24E EX MALE SCREW TERMINAL INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 24E EX MALE SCREW TERMINAL INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Technical Specifications

Parameters and characteristics for this part

Specification	09360242601

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	24 B
Termination Style	Screw
Voltage Rating	90 V

Part	Housing Material	Voltage Rating	Gender	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Size	Material Flammability Rating	Contact Finish	Contact Material	Color	Connector Type
HARTING Technology Group 09360242701	Polycarbonate (PC)	90 V	Female	16 A	-20 C	40 °C	Screw	24 B	UL94 V-0	Silver	Copper Alloy	Gray
HARTING Technology Group 09360242702	Polycarbonate (PC)	90 V	Female	16 A	-20 C	40 °C	Crimp	24 B	UL94 V-0			Gray	Insert without Contacts
HARTING Technology Group 09360242601	Polycarbonate (PC)	90 V	Male	16 A	-20 C	40 °C	Screw	24 B	UL94 V-0	Silver	Copper Alloy	Gray
HARTING Technology Group 09360242602	Polycarbonate (PC)	90 V	Male	16 A	-20 C	40 °C	Crimp	24 B	UL94 V-0			Gray	Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 24+Ground Position Screw
