180-M26-213R001 - 180-M26-213R001

180-M26-213R001

Active
MH Connectors

D SUB CONNECTOR, HD26, HIGH DENSITY, RECEPTACLE, 180 M SERIES, 26 CONTACTS, DA, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDrawing EN+4
180-M26-213R001 - 180-M26-213R001

180-M26-213R001

Active
MH Connectors

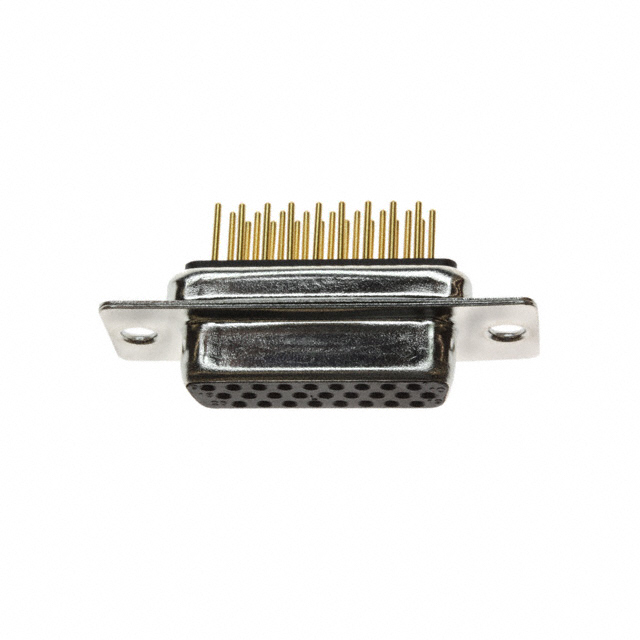

D SUB CONNECTOR, HD26, HIGH DENSITY, RECEPTACLE, 180 M SERIES, 26 CONTACTS, DA, SOLDER

Deep-Dive with AI

DocumentsDatasheetDrawing EN+4

Technical Specifications

Parameters and characteristics for this part

Specification180-M26-213R001
ColorBlack
Connector StyleHigh Density, D-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper Alloy
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesShielded
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount
Number of Positions26
Number of Rows3
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout2
Shell Size, Connector Layout(DA, A) High Density
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 12.63
10$ 9.70
25$ 8.77
40$ 8.33
80$ 7.74
230$ 6.94
440$ 6.51
945$ 6.05
NewarkEach 50$ 7.34
100$ 6.94
250$ 6.50

Description

General part information

180-M26 Series

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
