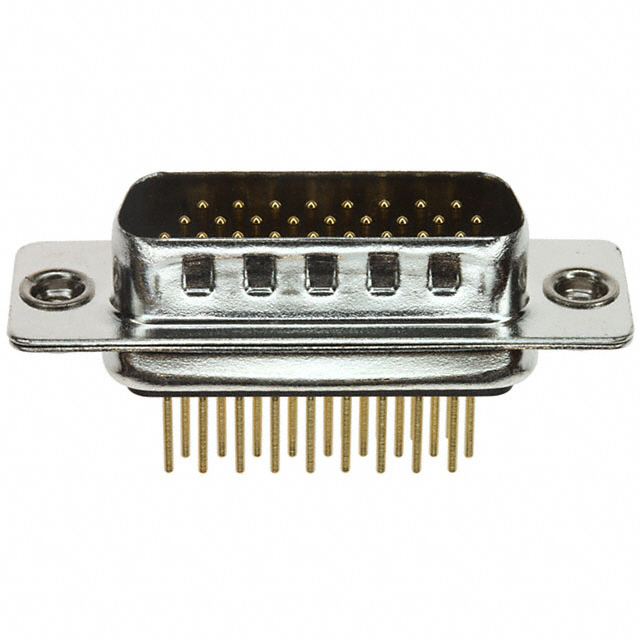

D SUB CONNECTOR, HD26, PLUG, 180 M SERIES, 26 CONTACTS, DA, THROUGH HOLE
Deep-Dive with AI
Search across all available documentation for this part.
180-M26-113R011
ActiveMH Connectors
D SUB CONNECTOR, HD26, PLUG, 180 M SERIES, 26 CONTACTS, DA, THROUGH HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 180-M26-113R011 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Grounding Indents, Shielded |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -50 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
180-M26 Series
| Part | Current Rating (Amps) | Wire Gauge [Min] | Wire Gauge [Max] | Flange Feature | Number of Positions | Color | Connector Style | Connector Type | Material Flammability Rating | Contact Type | Contact Material | Contact Finish Thickness | Features | Shell Material, Finish | Number of Rows | Shell Size, Connector Layout | Shell Size, Connector Layout | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Dielectric Material | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 5 A | 24 AWG | 28 AWG | Female Screwlock (4-40) Mating Side | 26 | Black | D-Sub High Density | Male Pins Plug | UL94 V-0 | Signal | Brass | Flash | Grounding Indents Shielded | Nickel Plated Steel | 3 | 2 | (DA A) High Density | 105 ░C | -55 °C | Gold | Polybutylene Terephthalate (PBT) Glass Filled | ||
MH Connectors | 5 A | 4-40 Board Side | 26 | Black | D-Sub High Density | Male Pins Plug | UL94 V-0 | Signal | Copper Alloy | Flash | Grounding Indents Shielded | Nickel Plated Steel | 3 | 2 | (DA A) High Density | 125 °C | -50 °C | Gold | Polyamide (PA9T) Nylon 9T | Solder | Panel Mount Through Hole | ||
MH Connectors | 5 A | 24 AWG | 28 AWG | Housing/Shell (Unthreaded) | 26 | Black | D-Sub High Density | Male Pins Plug | UL94 V-0 | Signal | Brass | Flash | Grounding Indents Shielded | Nickel Plated Steel | 3 | 2 | (DA A) High Density | 105 ░C | -55 °C | Gold | Polybutylene Terephthalate (PBT) Glass Filled | ||
MH Connectors | 5 A | 4-40 Board Side | 26 | Black | D-Sub High Density | Male Pins Plug | UL94 V-0 | Signal | Copper Alloy | Flash | Board Lock Grounding Indents Shielded | Nickel Plated Steel | 3 | 2 | (DA A) High Density | 125 °C | -50 °C | Gold | Polyamide (PA9T) Nylon 9T | Solder | Panel Mount Through Hole | ||
MH Connectors | 5 A | 24 AWG | 28 AWG | Cable Side | 26 | Black | D-Sub High Density | Male Pins Plug | UL94 V-0 | Signal | Brass | Flash | Grounding Indents Shielded | Nickel Plated Steel | 3 | 2 | (DA A) High Density | 105 ░C | -55 °C | Gold | Polybutylene Terephthalate (PBT) Glass Filled | ||
MH Connectors | 5 A | Housing/Shell (Unthreaded) | 26 | Black | D-Sub High Density | Receptacle Female Sockets | UL94 V-0 | Signal | Copper Alloy | Flash | Shielded | Nickel Plated Steel | 3 | 2 | (DA A) High Density | 125 °C | -55 °C | Gold | Polyamide (PA9T) Nylon 9T | Solder | Panel Mount Through Hole | ||
MH Connectors | 5 A | 4-40 Board Side | 26 | Black | D-Sub High Density | Receptacle Female Sockets | UL94 V-0 | Signal | Copper Alloy | Flash | Shielded | Nickel Plated Steel | 3 | 2 | (DA A) High Density | 125 °C | -55 °C | Gold | Polyamide (PA9T) Nylon 9T | Solder | Panel Mount Through Hole | ||
MH Connectors | 3 A | 24 AWG | 28 AWG | Housing/Shell (Unthreaded) | 26 | Black | D-Sub High Density | Receptacle Female Sockets | UL94 V-0 | Signal | Copper Alloy | Flash | Shielded | Nickel Plated Steel | 3 | 2 | (DA A) High Density | 125 °C | -55 °C | Gold | Polybutylene Terephthalate (PBT) Glass Filled | ||
MH Connectors | 5 A | 4-40 Board Side | 26 | Black | D-Sub High Density | Receptacle Female Sockets | UL94 V-0 | Signal | Copper Alloy | Flash | Shielded | Nickel Plated Steel | 3 | 2 | (DA A) High Density | 125 °C | -55 °C | Gold | Polyamide (PA9T) Nylon 9T | Solder | Panel Mount Through Hole | ||
MH Connectors | 5 A | 24 AWG | 28 AWG | Cable Side | 26 | Black | D-Sub High Density | Male Pins Plug | UL94 V-0 | Signal | Brass | Flash | Grounding Indents Shielded | Nickel Plated Steel | 3 | 2 | (DA A) High Density | 105 ░C | -55 °C | Gold | Polybutylene Terephthalate (PBT) Glass Filled |
