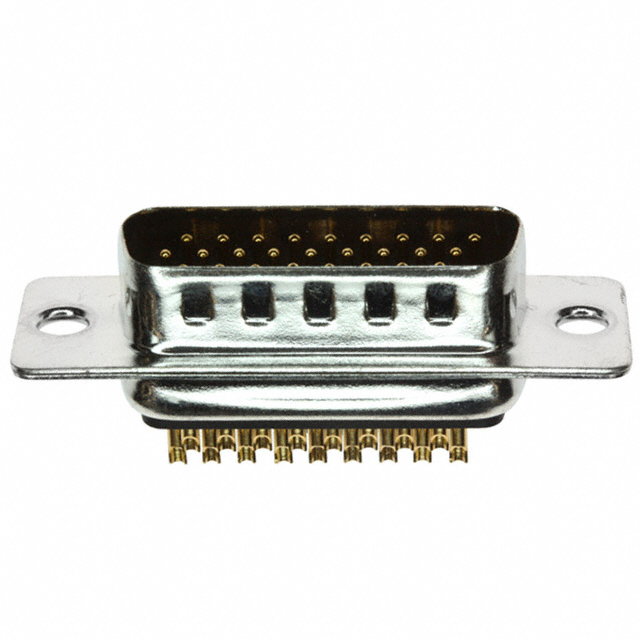

D SUB CONNECTOR, NORCOMP - 180 SERIES, DA, PLUG, 26, STEEL, SOLDER ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
180-M26-103L001
ActiveMH Connectors
D SUB CONNECTOR, NORCOMP - 180 SERIES, DA, PLUG, 26, STEEL, SOLDER ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 180-M26-103L001 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
180-M26 Series
26 Position D-Sub, High Density Plug, Male Pins Connector
