M80-8880405
ActiveRECTANGULAR CONNECTOR, DATAMATE L-TEK M80 SERIES, 4 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 2 ROW
Deep-Dive with AI
Search across all available documentation for this part.
M80-8880405
ActiveRECTANGULAR CONNECTOR, DATAMATE L-TEK M80 SERIES, 4 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 2 ROW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8880405 |
|---|---|
| Cable Termination | Crimp |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 2 mm |
| Row Spacing | 0.079 in |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.31 | |
| 10 | $ 3.00 | |||
| 25 | $ 2.84 | |||
| 50 | $ 2.78 | |||
| 100 | $ 2.65 | |||
| 250 | $ 2.32 | |||
| 500 | $ 2.25 | |||
| 1000 | $ 1.92 | |||
| 2500 | $ 1.79 | |||
Description
General part information
M80-888 Series

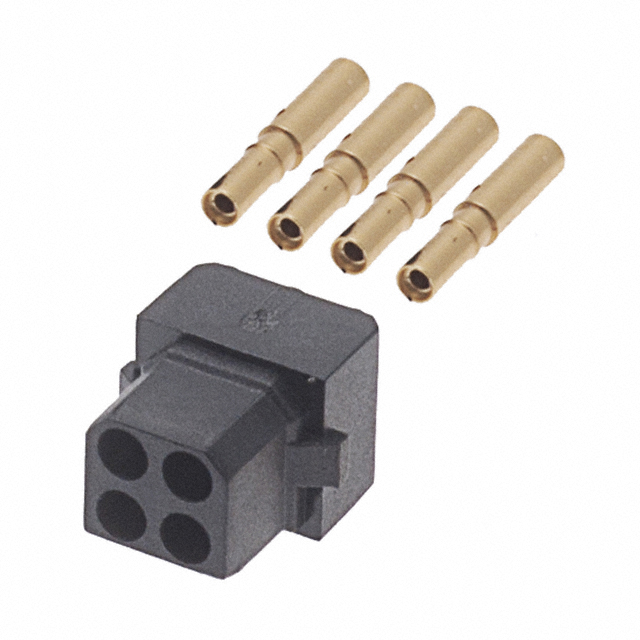

The M80-8880405 is a 4-way 2-row Datamate L-Tek Female DIL Cable Connector Kit with gold-plated brass contacts, black PBT housing, 2mm pitch spacing and crimp termination. Kit of housing and applicable number of contacts (spare contacts = M80-0130005). Small bore, suitable for 24 to 28AWG cable. 2.00mm pitch high-reliability Datamate connector system. Contacts are rear insertable. Mates with male connectors.
