M80-8881805
ActiveHarwin Inc.

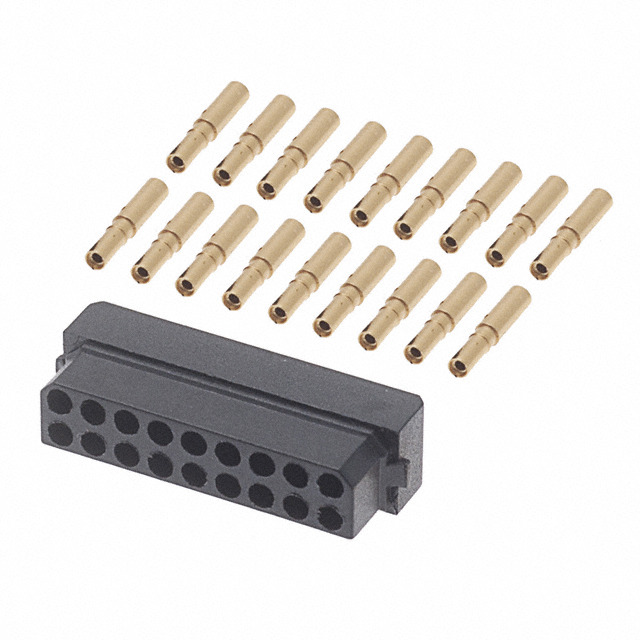

CONN RCPT 18POS CRIMP 24-28AWG
Deep-Dive with AI
Search across all available documentation for this part.
M80-8881805
ActiveHarwin Inc.
CONN RCPT 18POS CRIMP 24-28AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8881805 |
|---|---|
| Cable Termination | Crimp |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 2 mm |
| Row Spacing | 0.079 in |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.13 | |
| 10 | $ 9.46 | |||
| 25 | $ 8.86 | |||
| 50 | $ 8.44 | |||
| 100 | $ 8.04 | |||
| 250 | $ 7.54 | |||
| 500 | $ 7.18 | |||
| 1000 | $ 6.83 | |||
Description
General part information
M80-888 Series
18 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
